Mobile crusher plant

Ⅰ. Introduction, features & technical data

1. Introduction

Mobile crushers are tire-mounted rock crushing equipment that is easy to relocate and transport, and are widely used in aggregate production, recycling, and mining operations.

Mobile crushers can replace stationary crushing systems, reducing the need for truck transportation of ore and thus lowering operating costs.

2. Features

A. Versatile

Customizable for various applications. Durable wear parts and optimized crushing chamber design improve throughput and uptime.

B. High Reliability

Based on years of experience in crusher design, engineering, and manufacturing by the Deya technical team. Continuous quality control and high-quality components.

C. Energy-Saving and Environmentally Friendly

Advanced drive unit, motor, and reducer. Improved dust and noise reduction. Convenient transportation.

D. Safe and Convenient Operation and Maintenance

One-button start and stop function. Real-time operation and easy process optimization. User interface available in multiple major languages. Excellent after sale service network.

3. Technical data

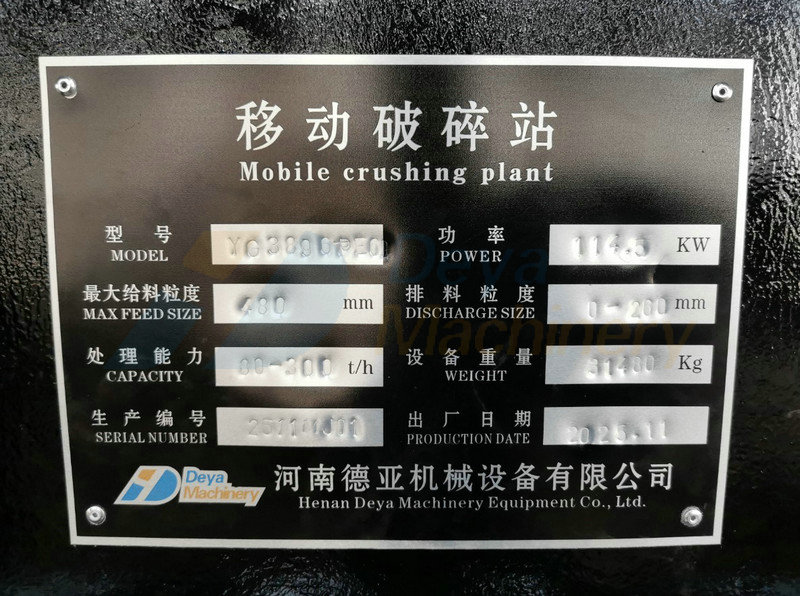

Name: Mobile crusher plant

Model: YG9638PE69

Vibrating feeder ZSW-3800x960

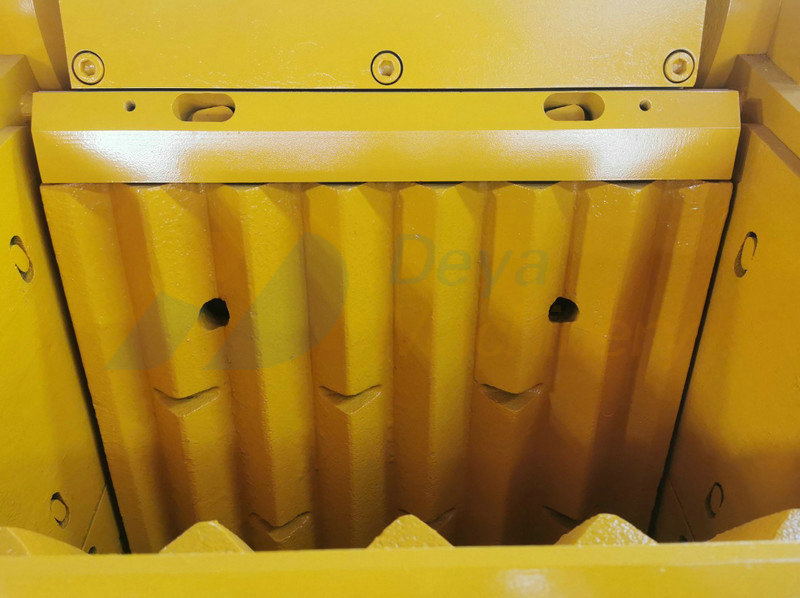

Jaw crusher PEV 600x900

Main belt conveyor B800x10000mm

Side belt conveyor B500x3500mm

Capacity: 150 tons per hour

Trailer: double axles

Total power 108.5 KW

Diesel generator set(optional): 250KW with Yuchai engine YC6MK420L-D20, 281/309kW

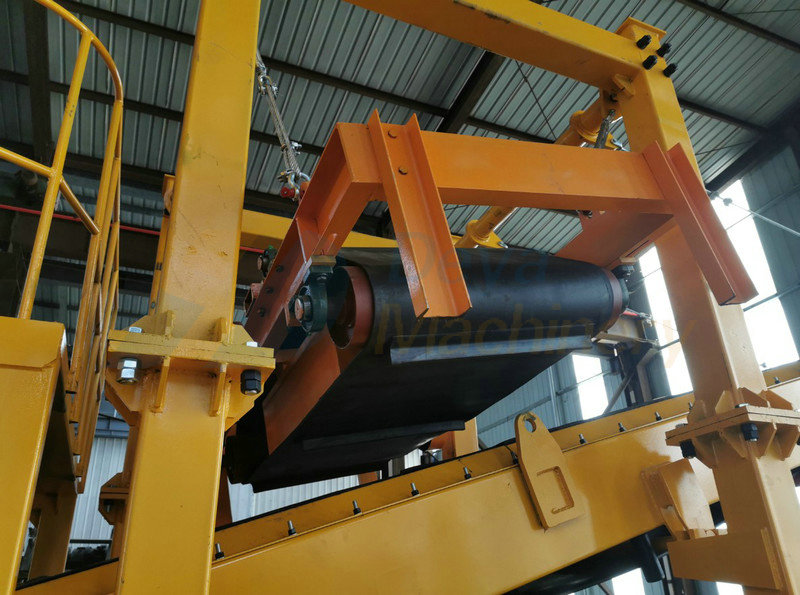

Suspension belt magnetic separator: RCYD-8

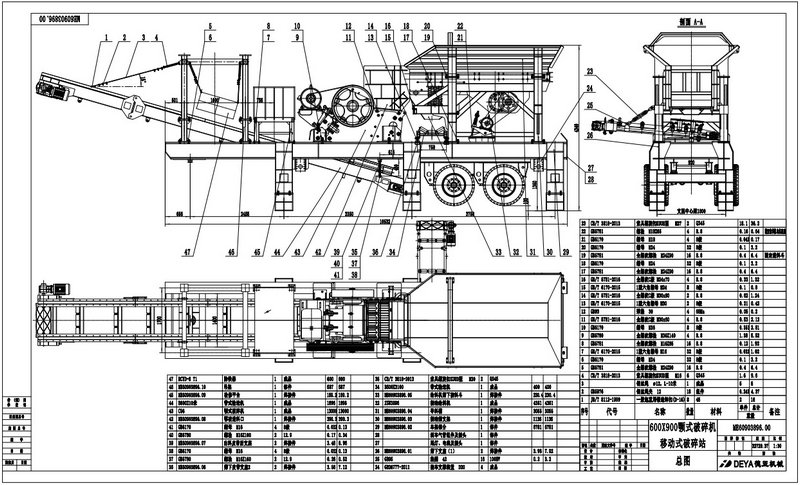

Ⅱ. Assembly drawing of mobile crusher plant

Ⅲ. Production procedure

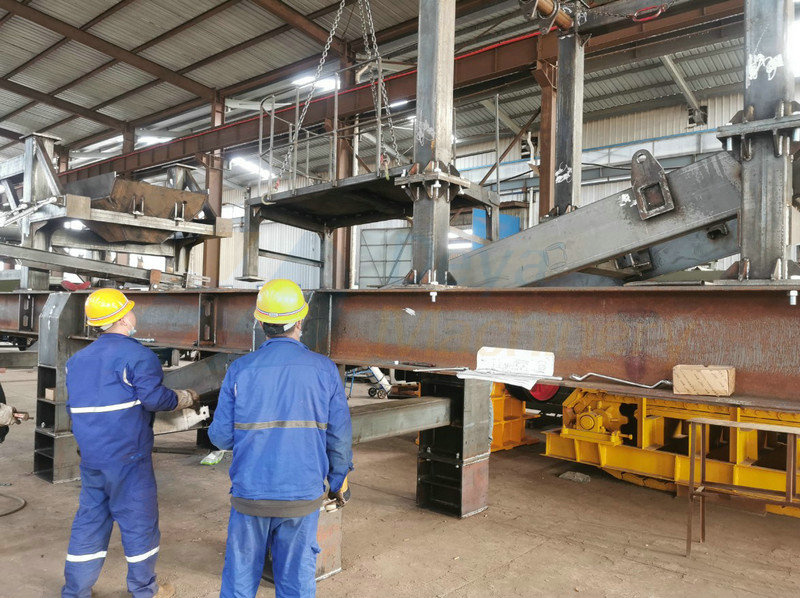

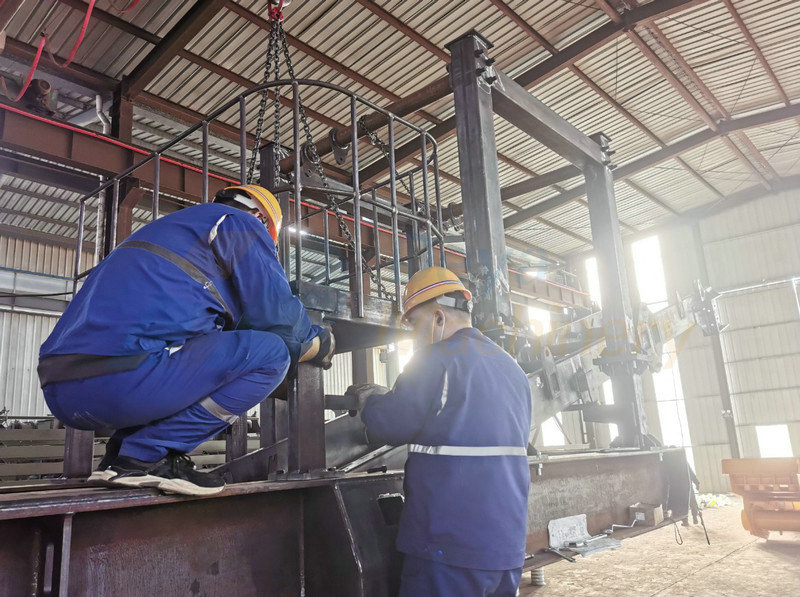

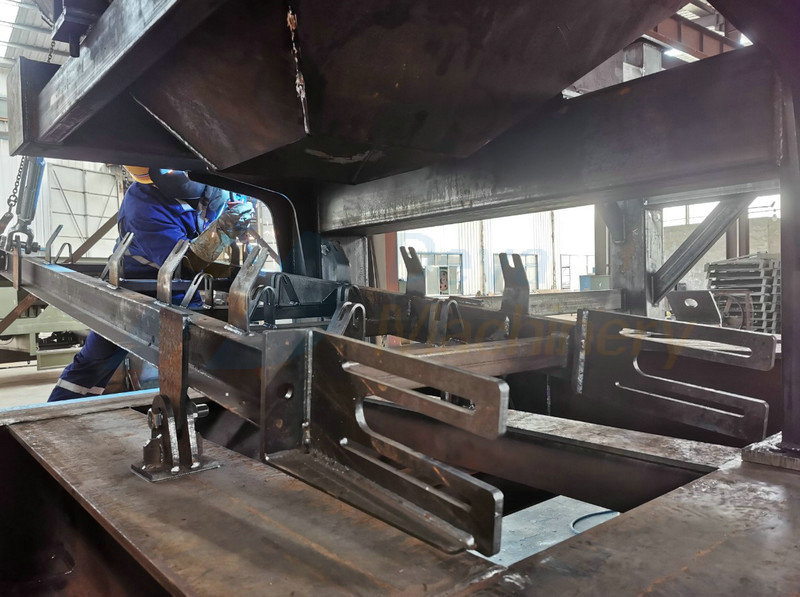

1. Parts assembly & welding

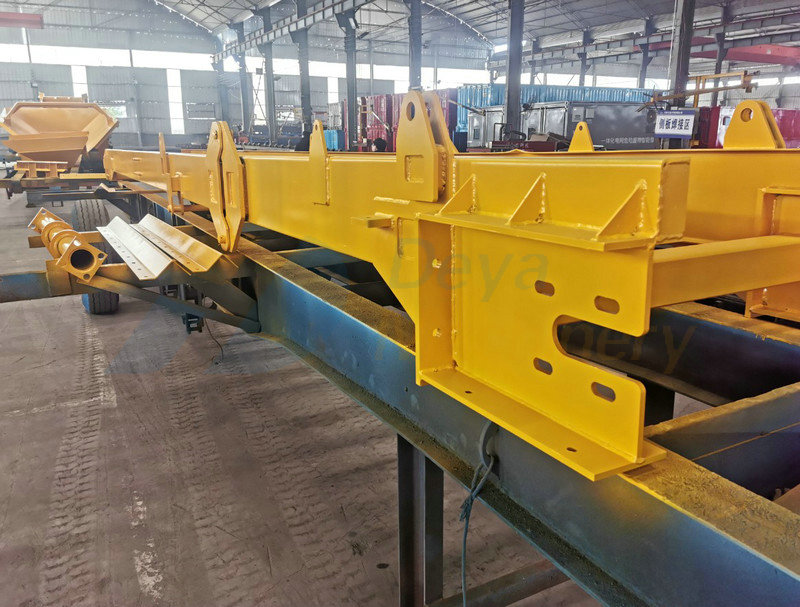

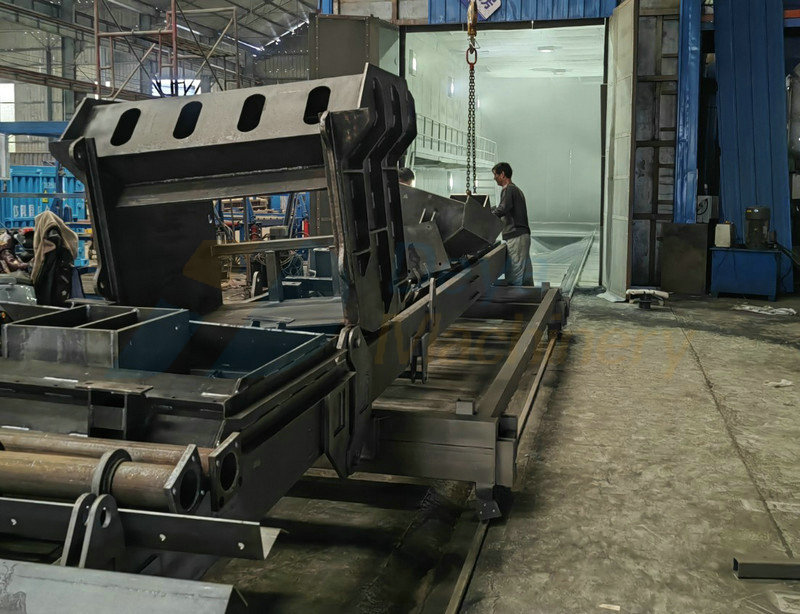

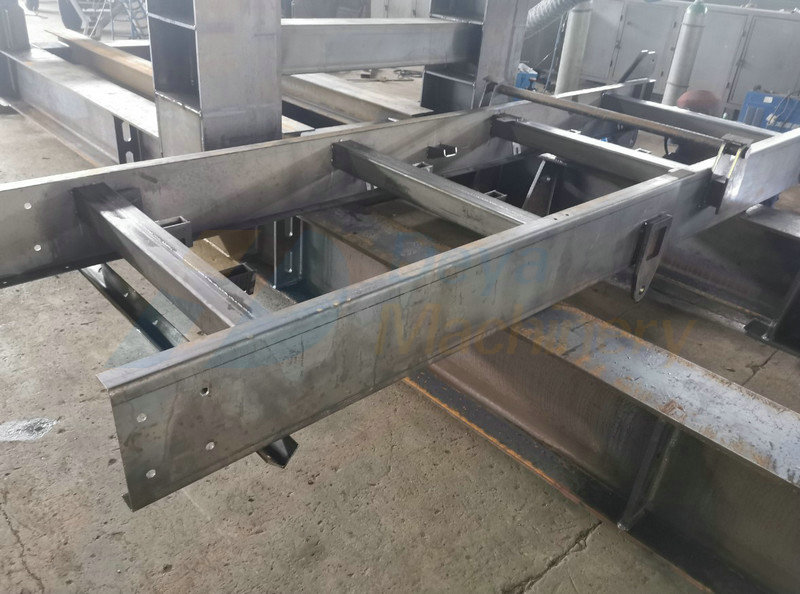

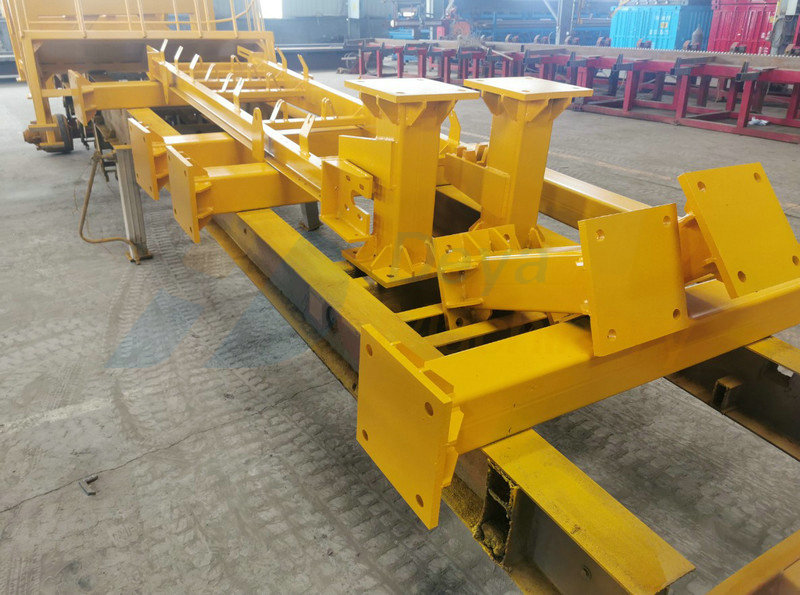

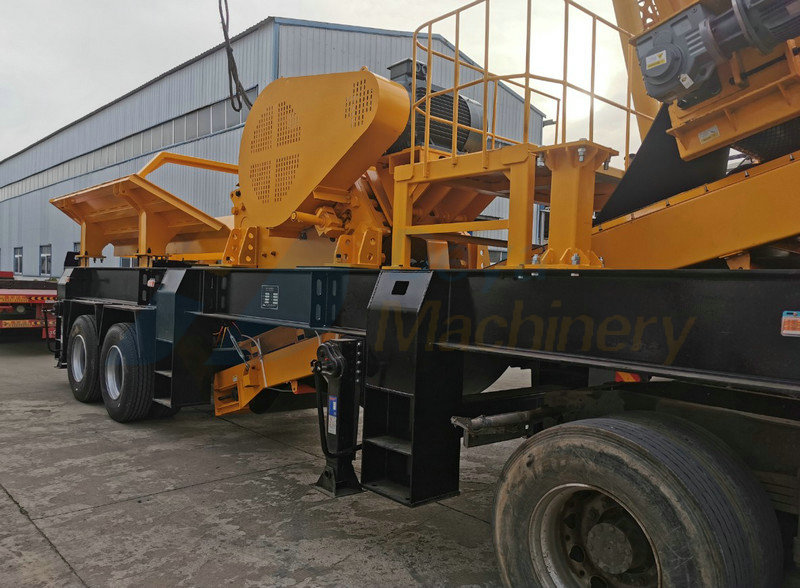

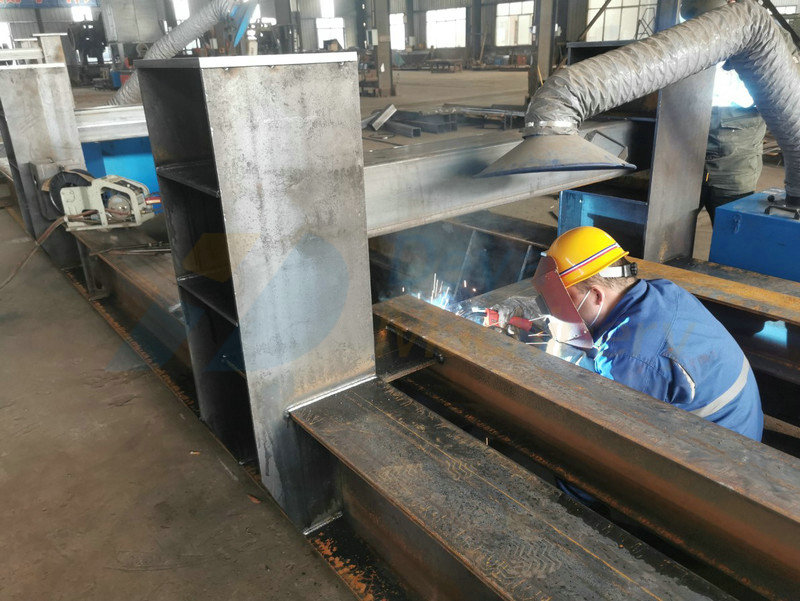

A. Main frame of the mobile crusher plant trailer

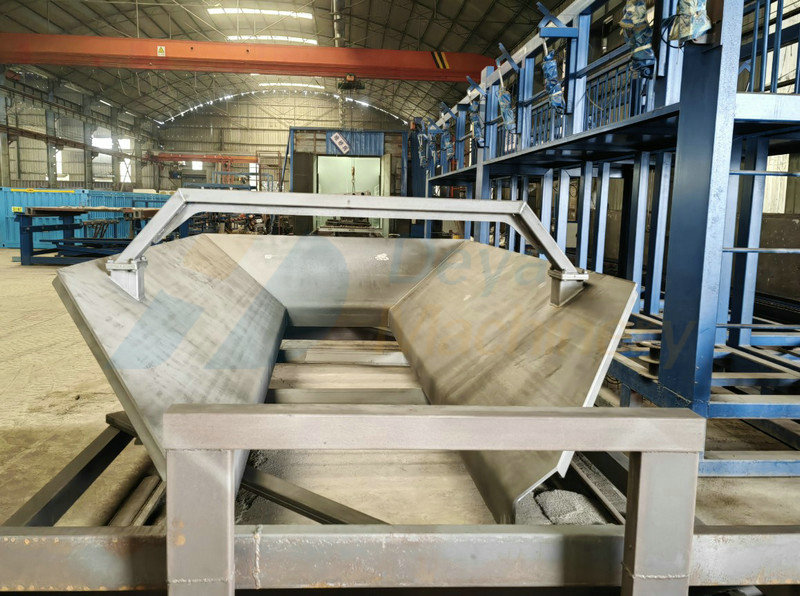

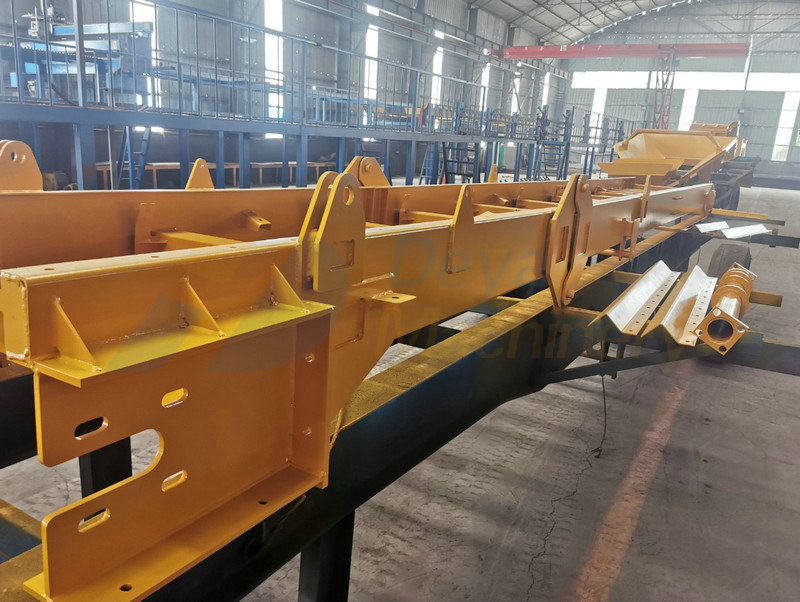

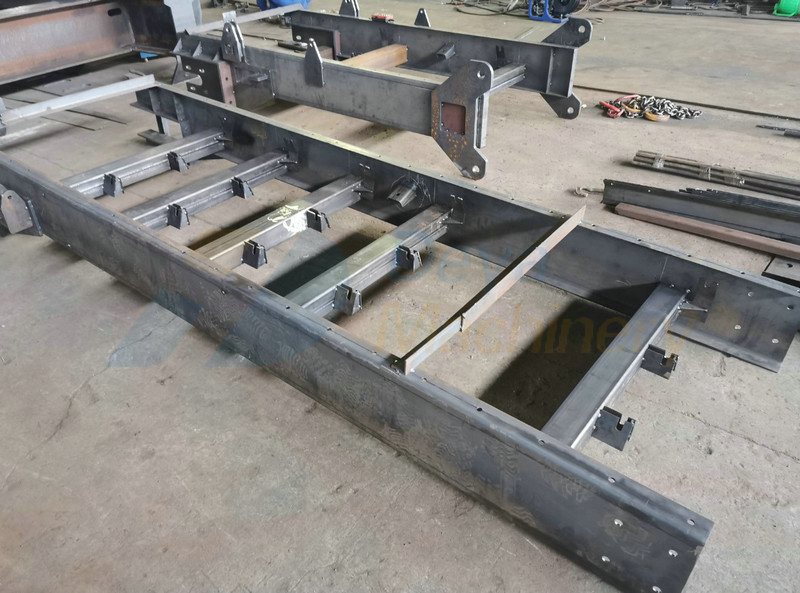

B. Conveyors frame

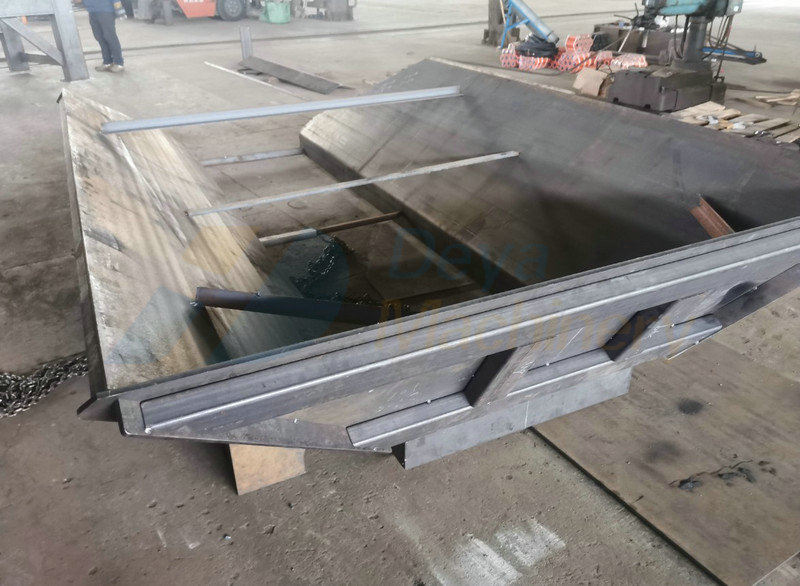

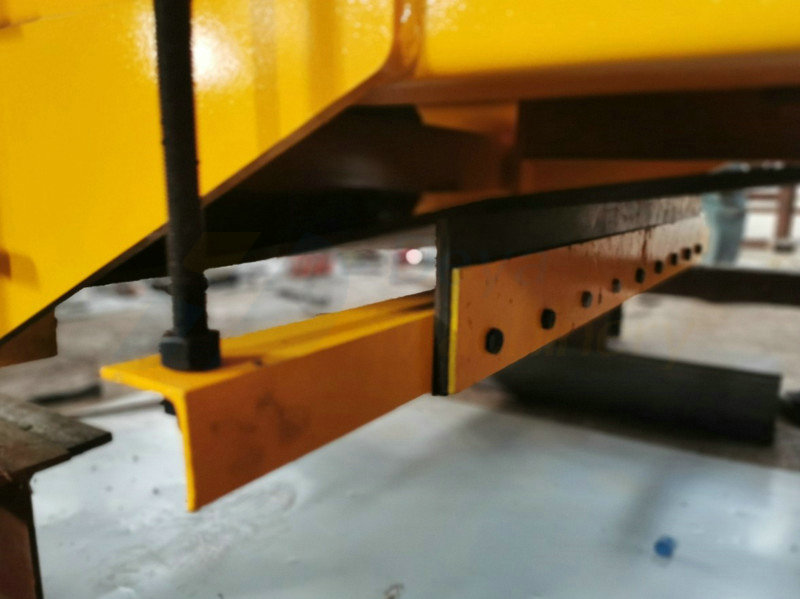

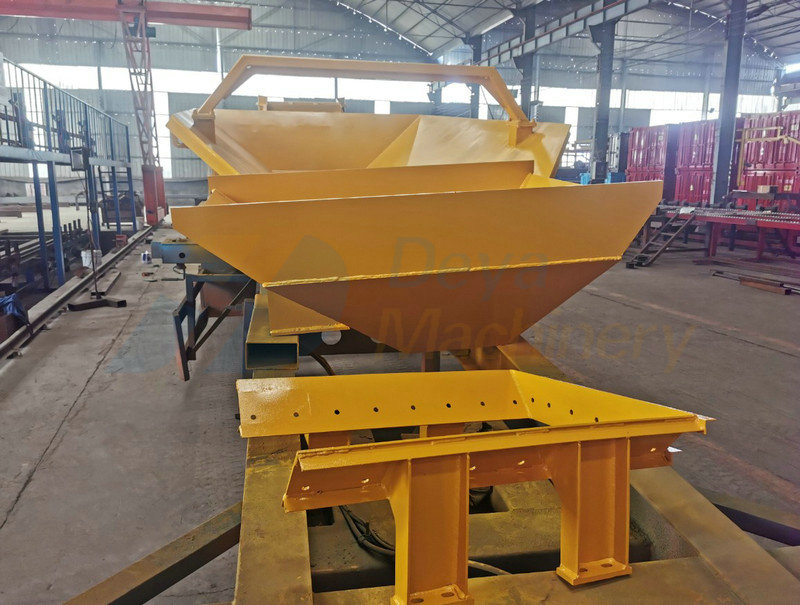

C. Vibration feeder loading hopper

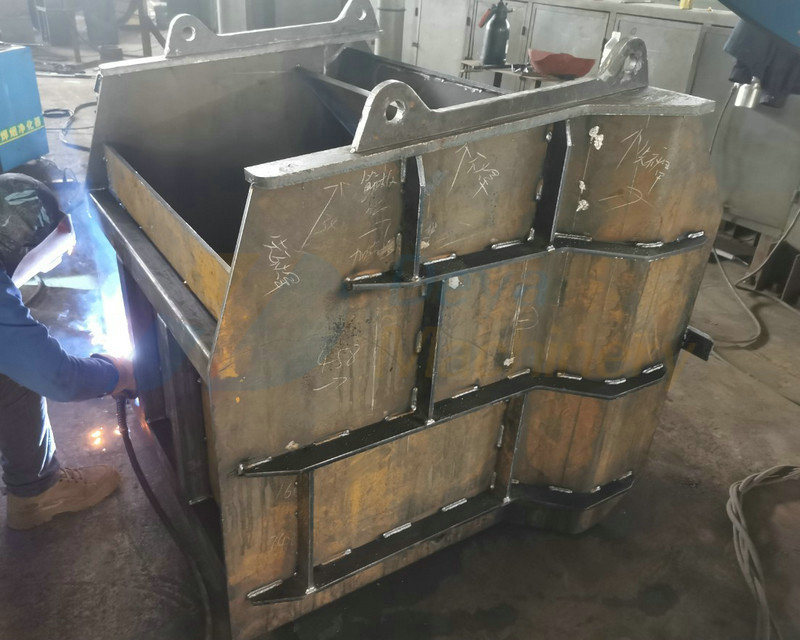

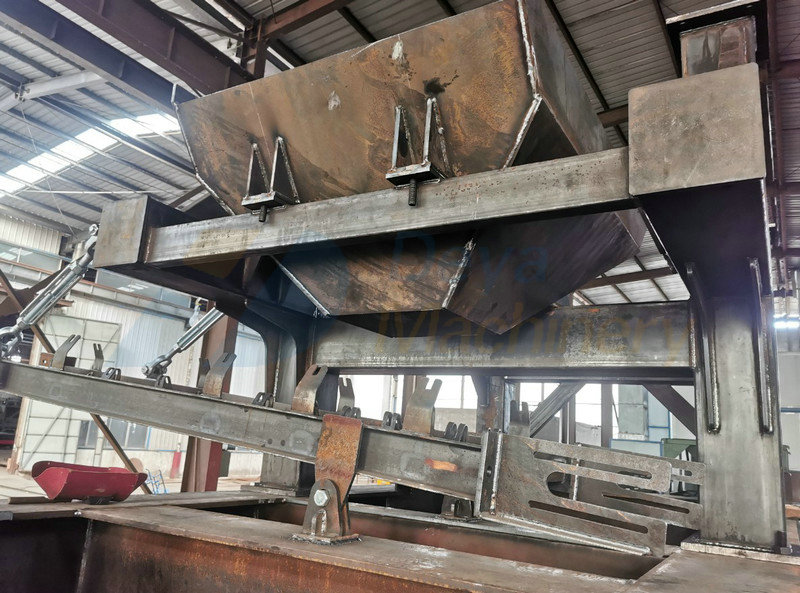

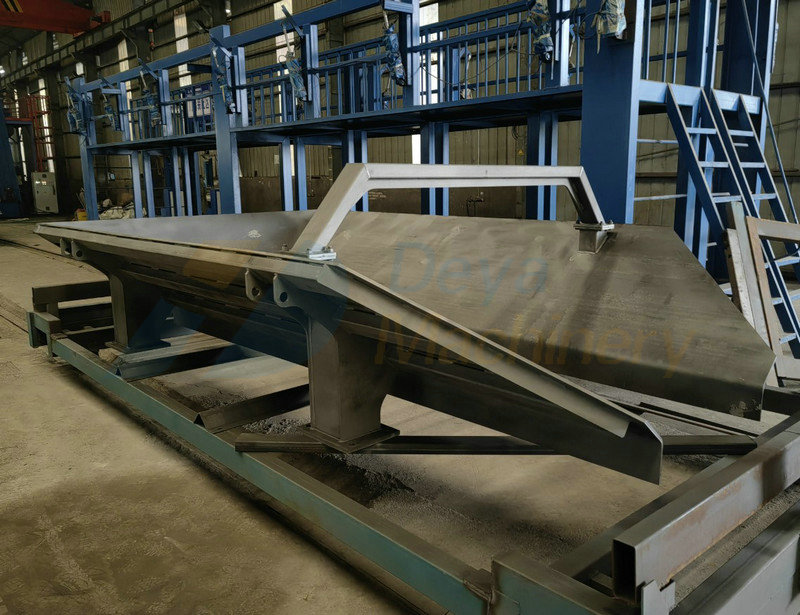

D. Jaw crusher loading hopper

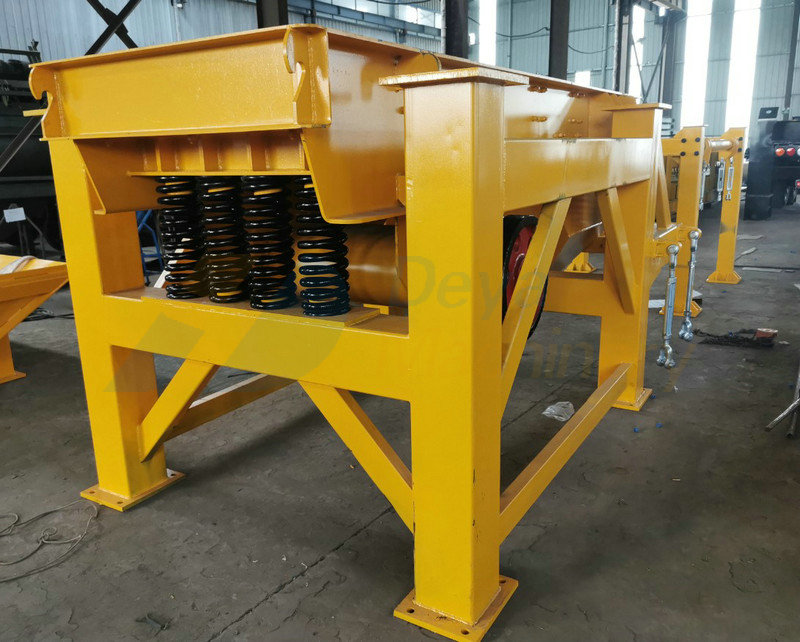

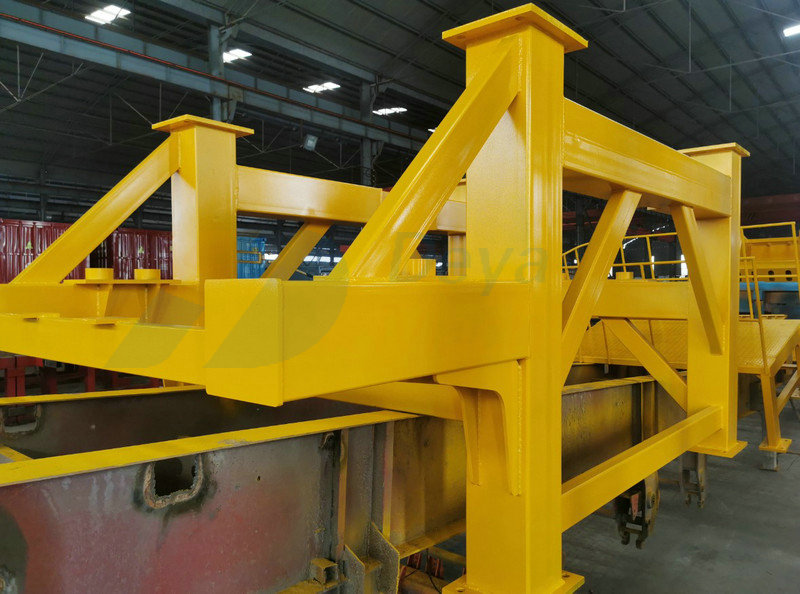

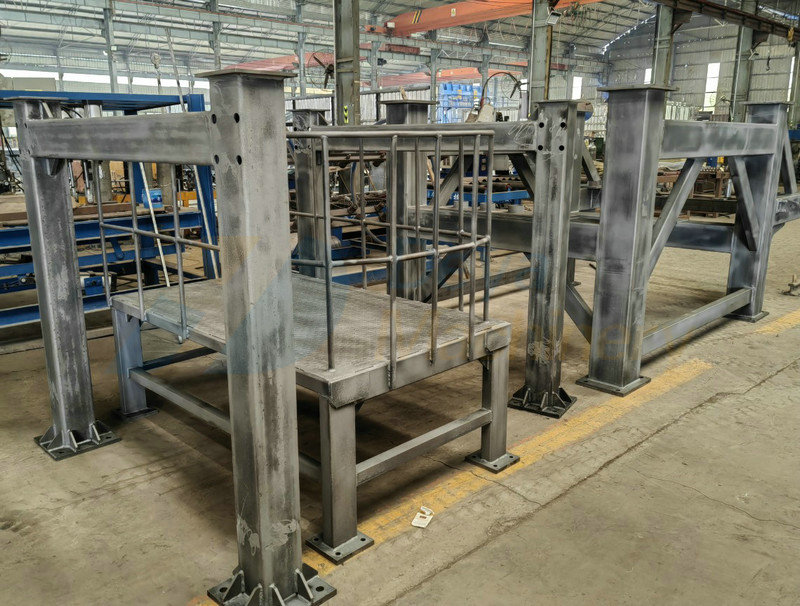

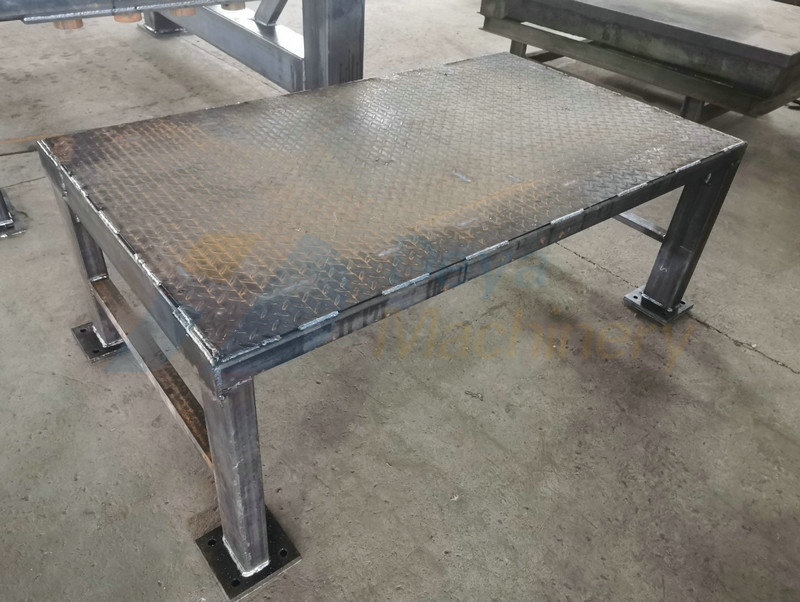

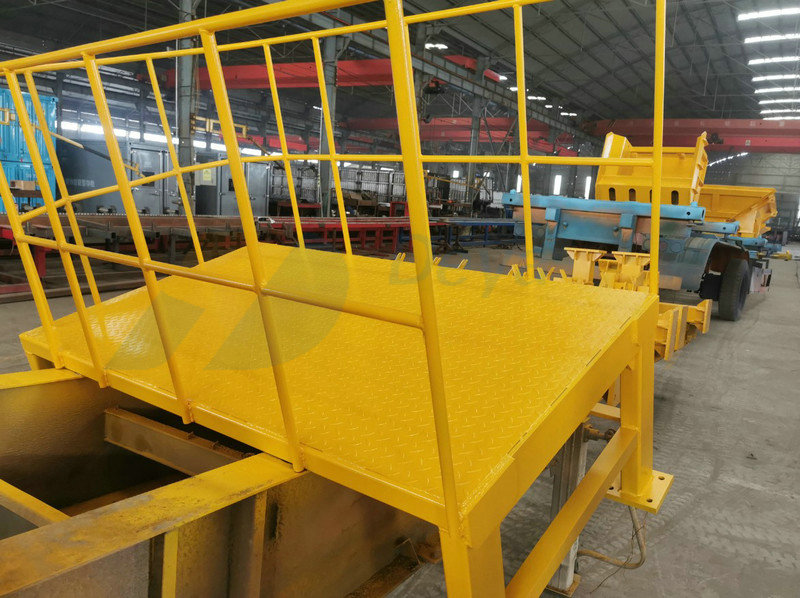

E. Maintenance platform

F. Vibration feeder supporting frame

2. Pirmary assembly to check positions

3. Sandblasting

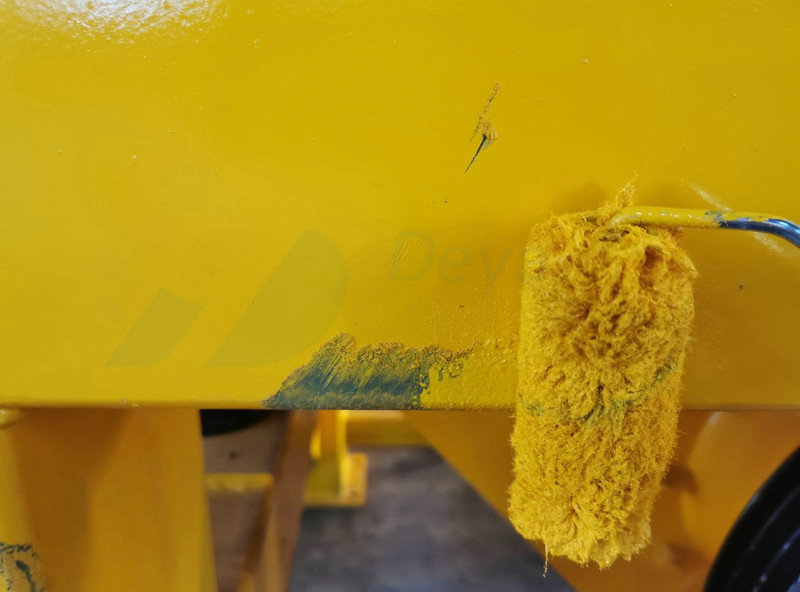

4. Coat painting & surface painting

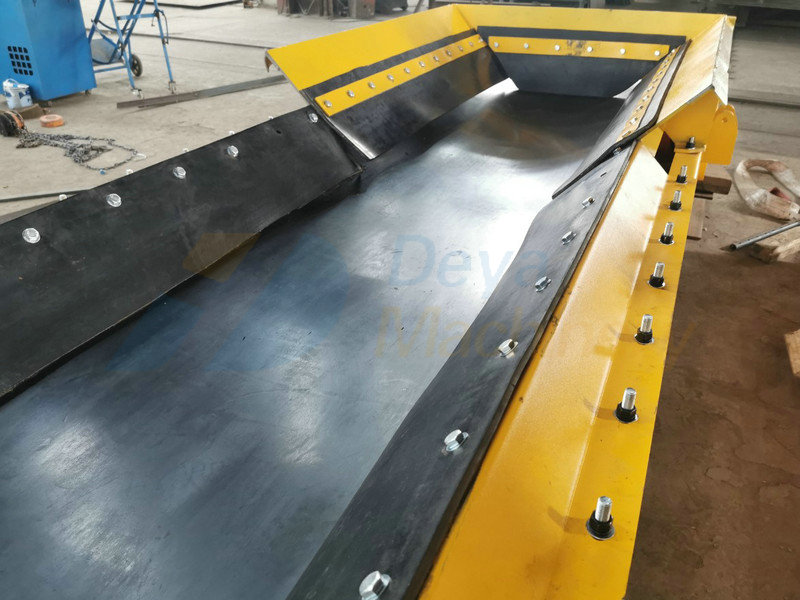

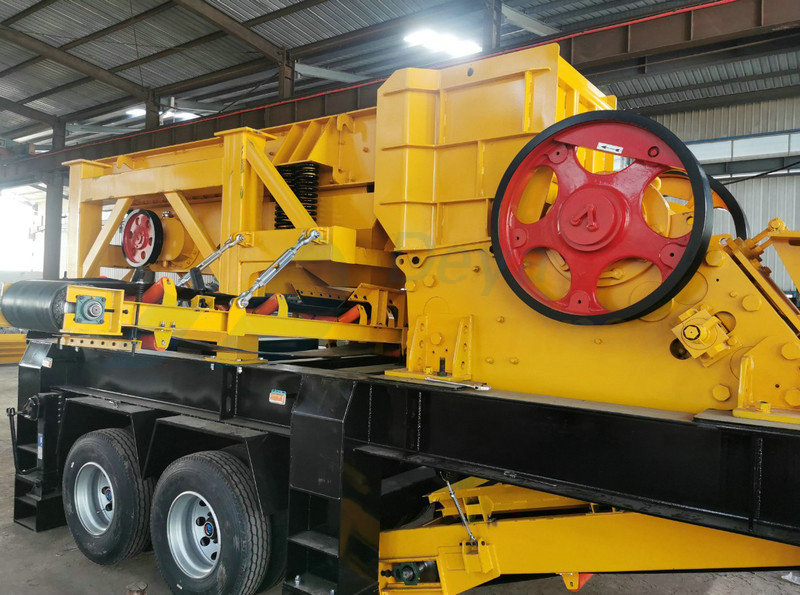

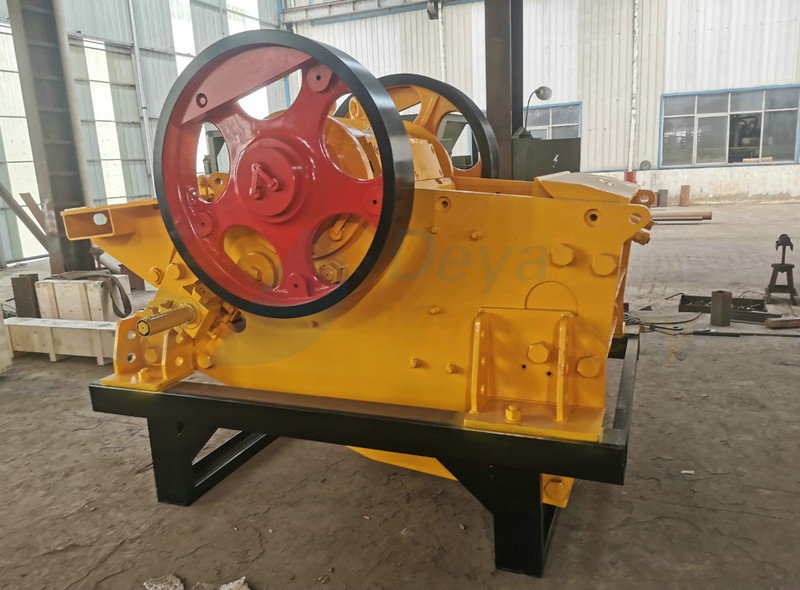

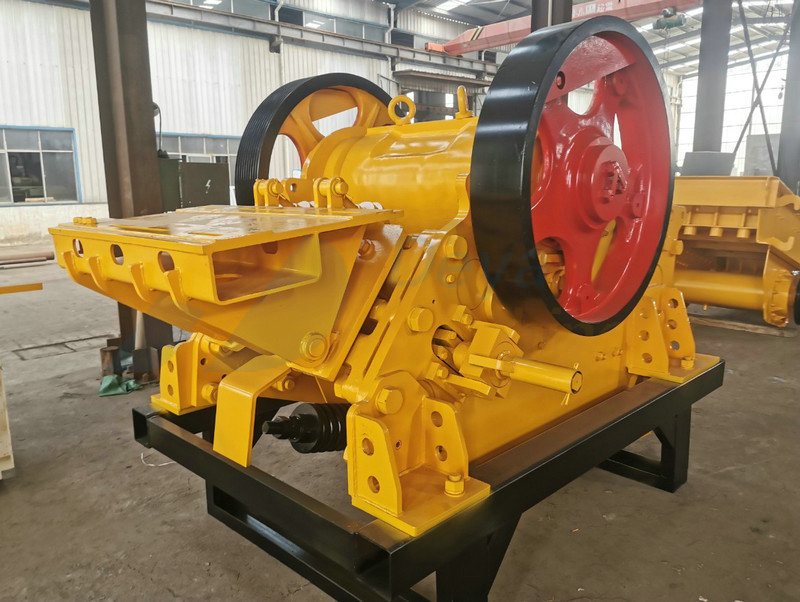

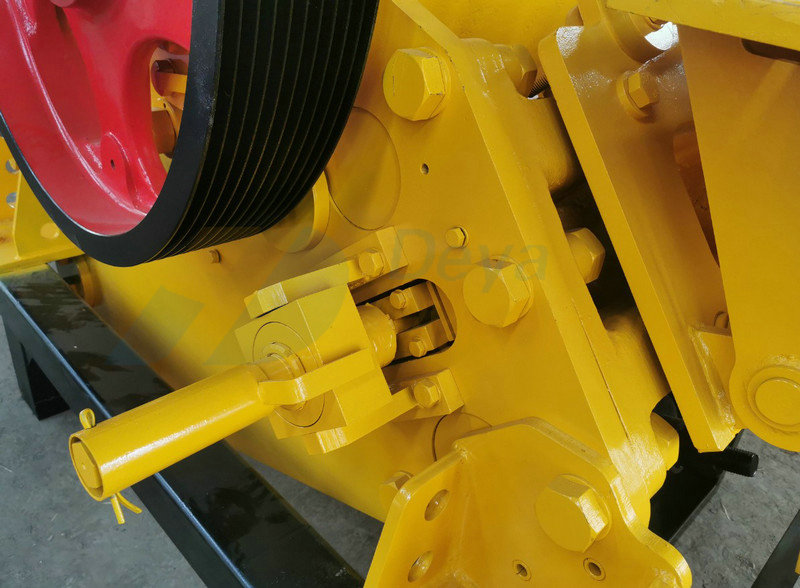

5. Vibration feeder & jaw crusher

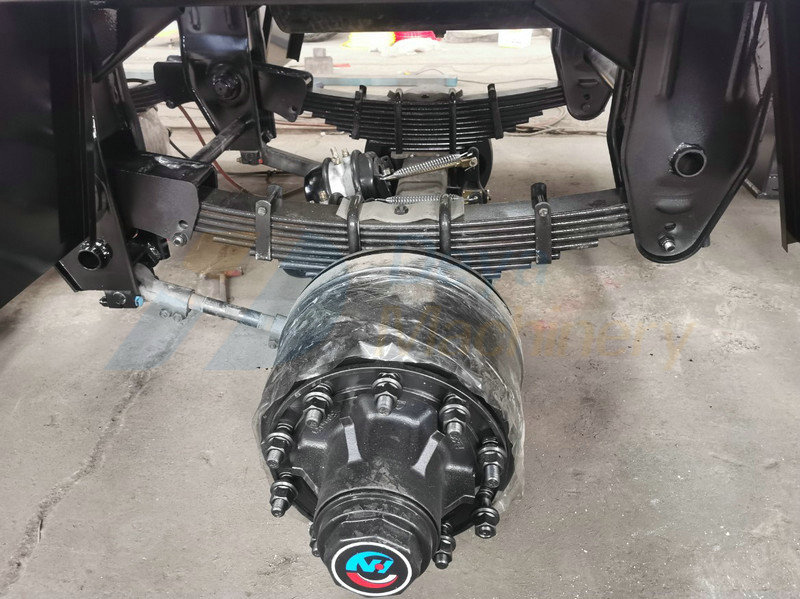

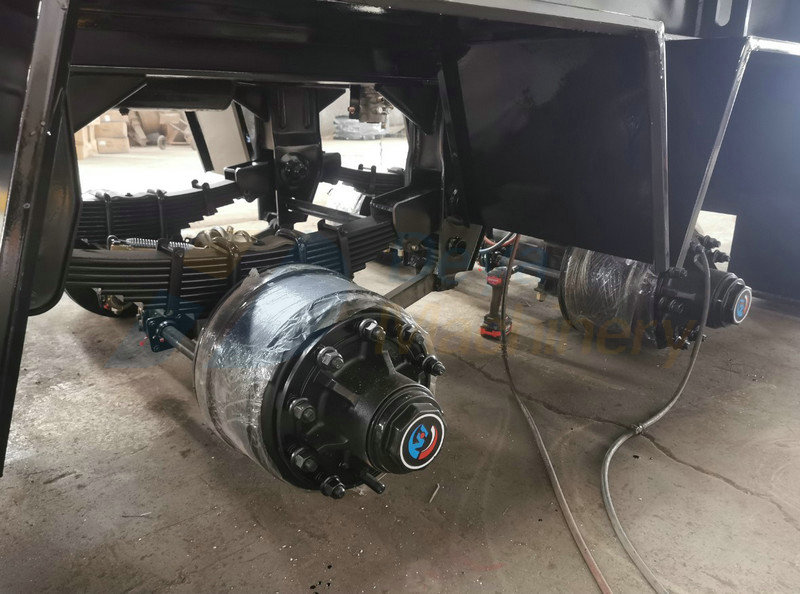

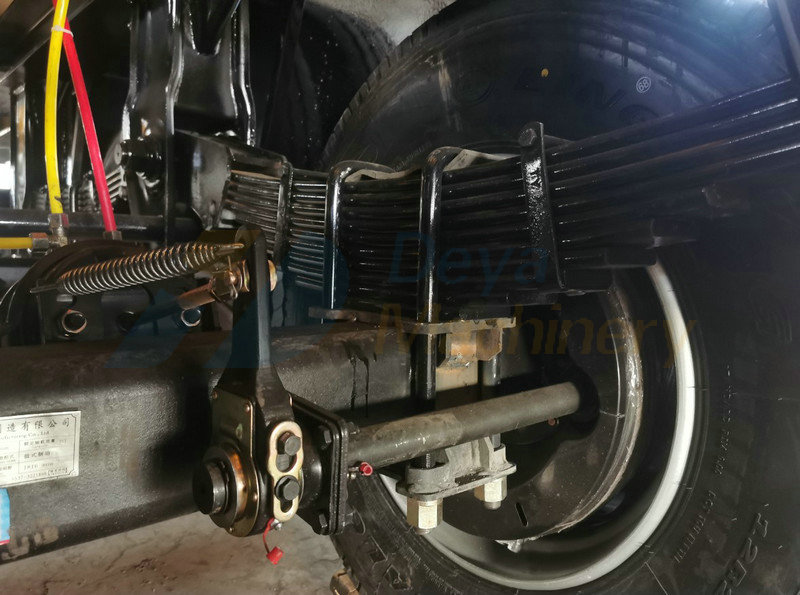

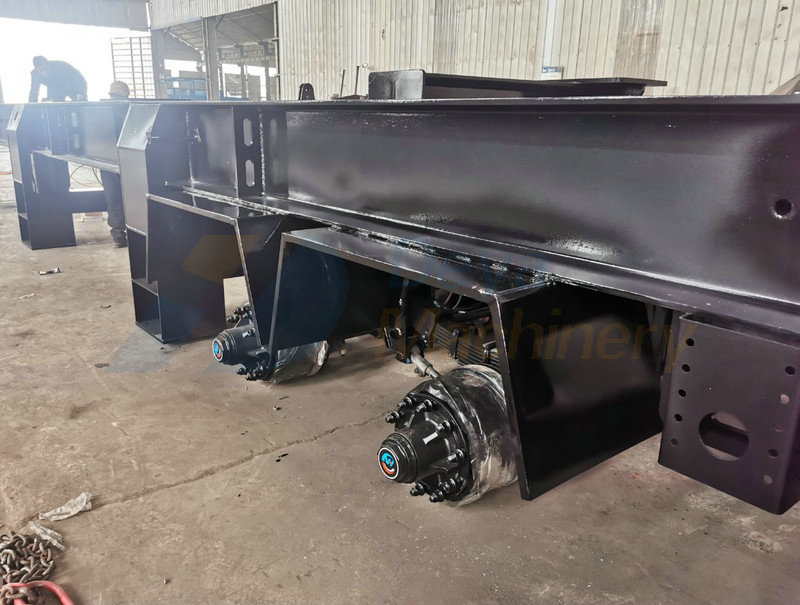

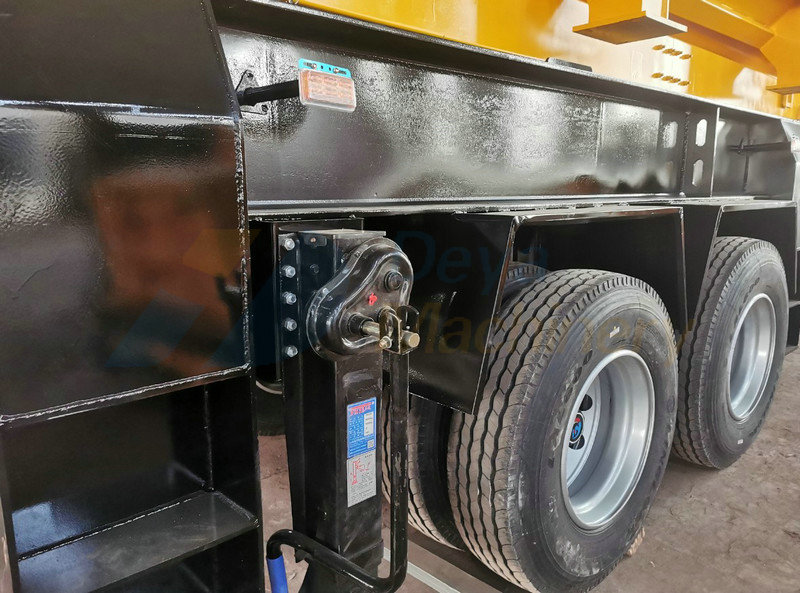

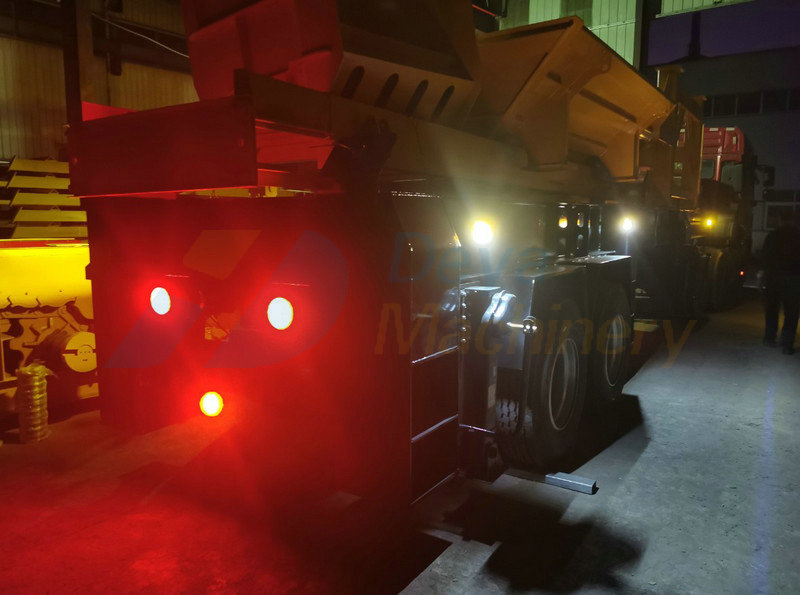

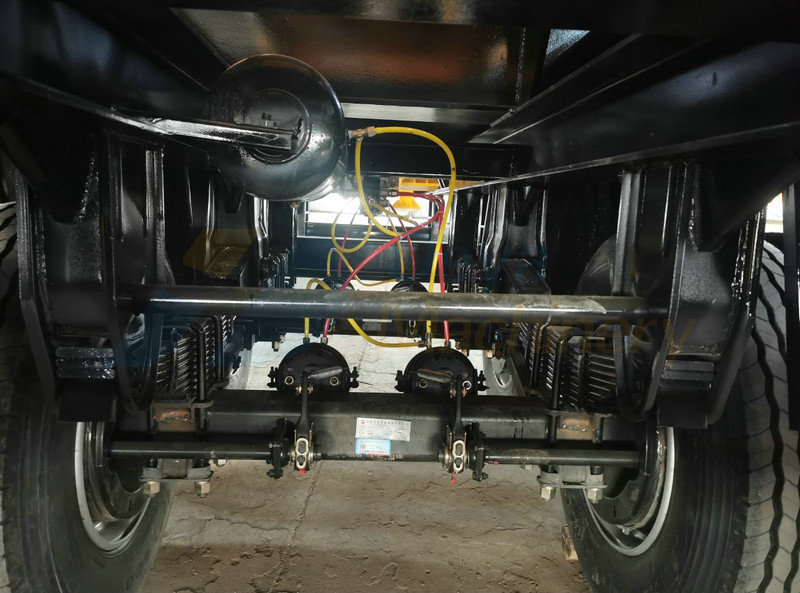

6. Trailer installation of air brake and tires

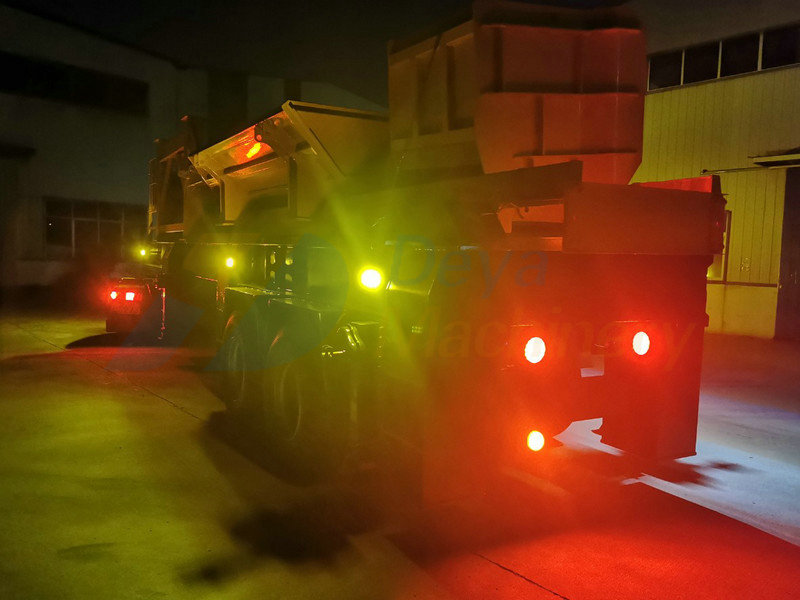

7. Road testing 50KM by standard truck towing

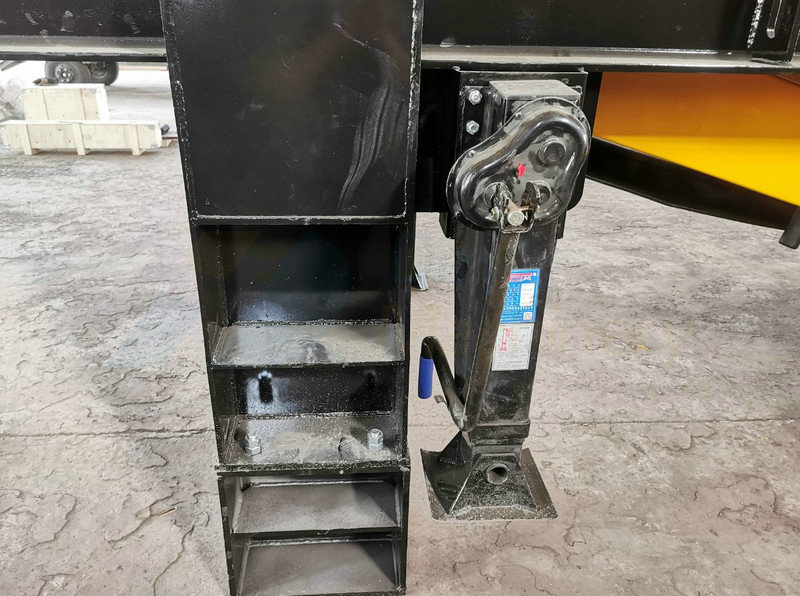

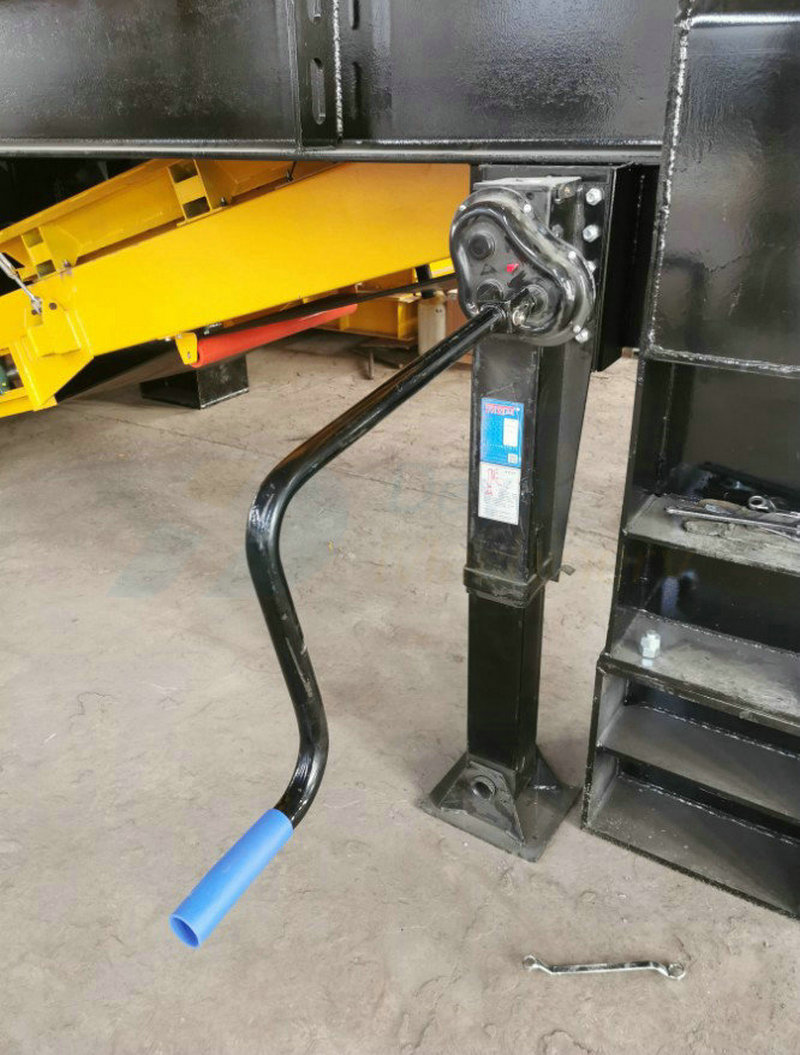

8. Manual lifting device of the trailer

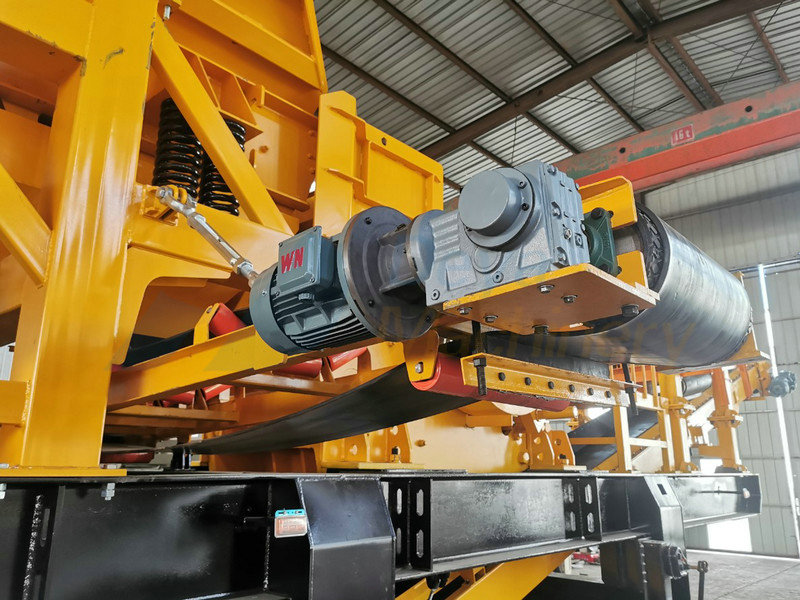

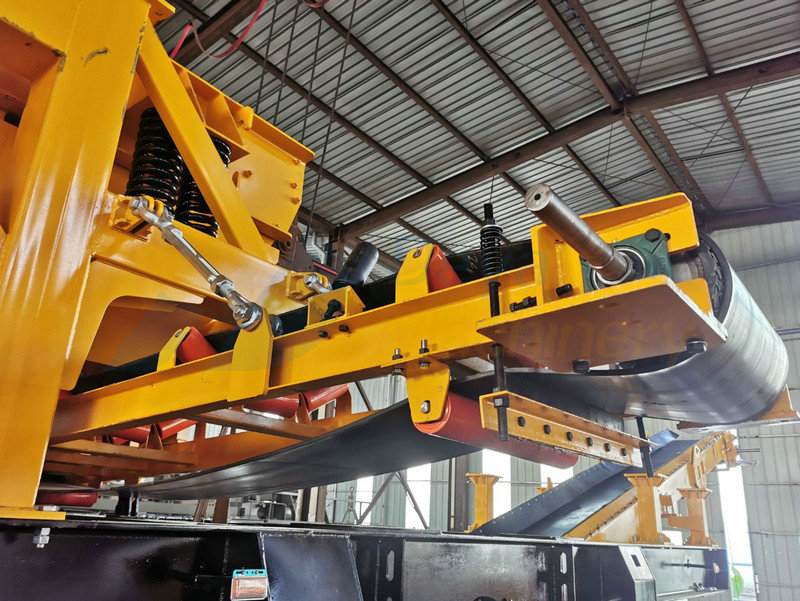

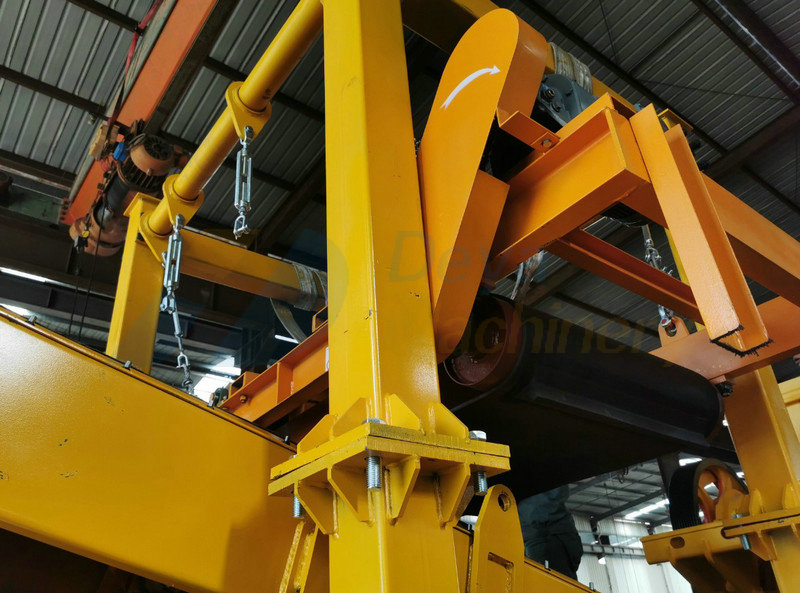

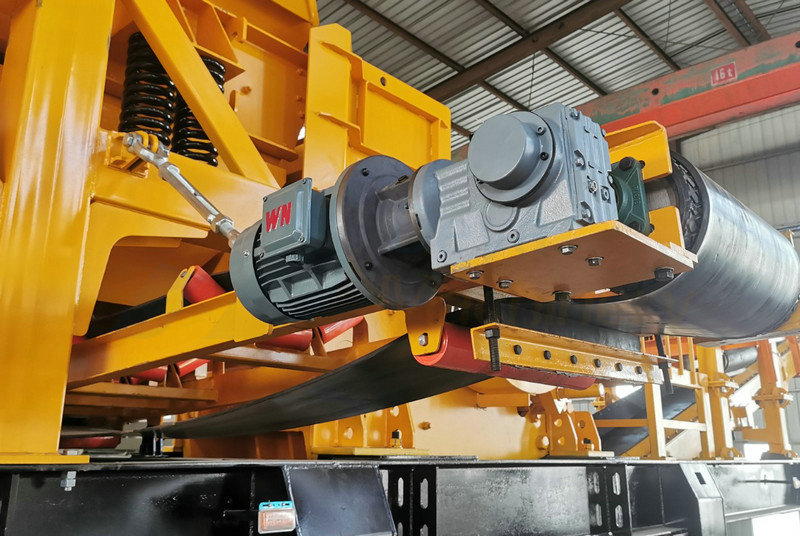

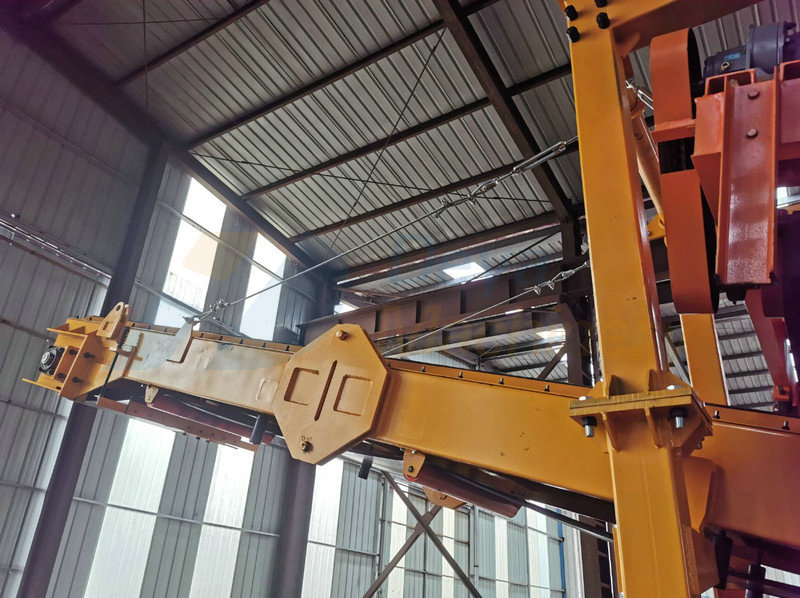

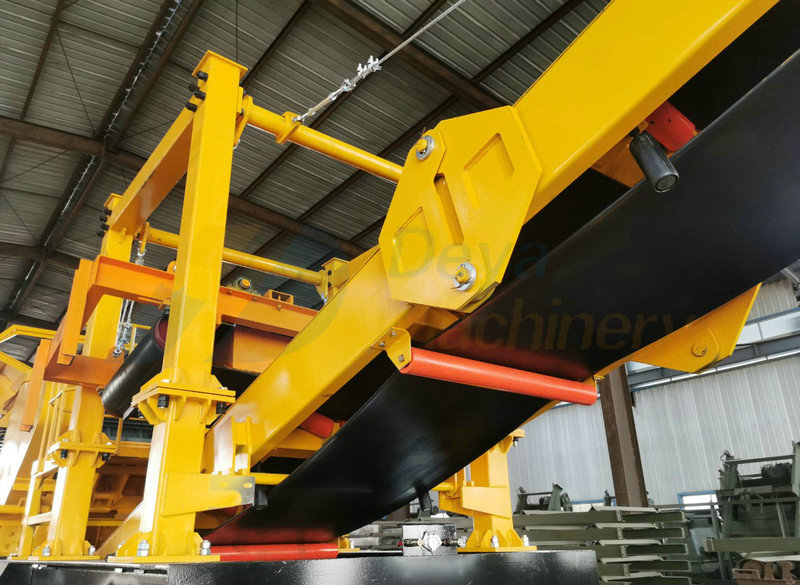

9. Installation of main belt conveyor and side conveyor

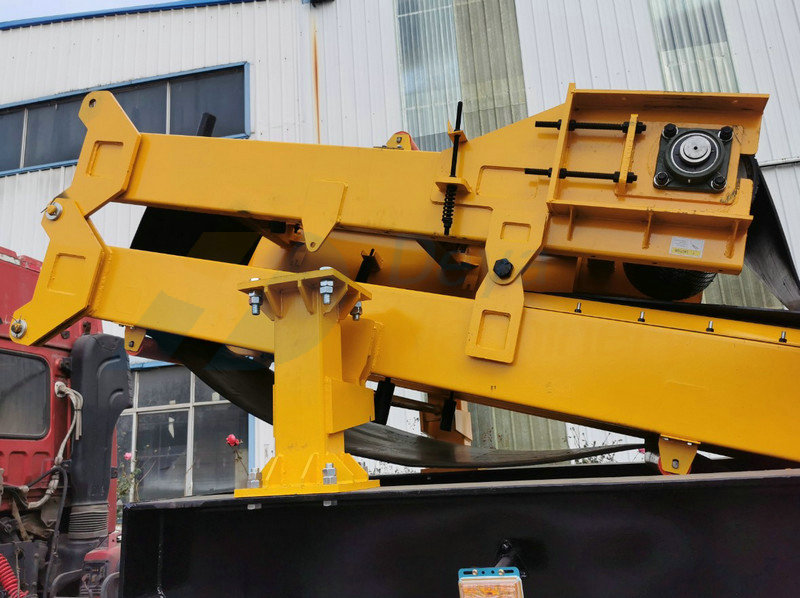

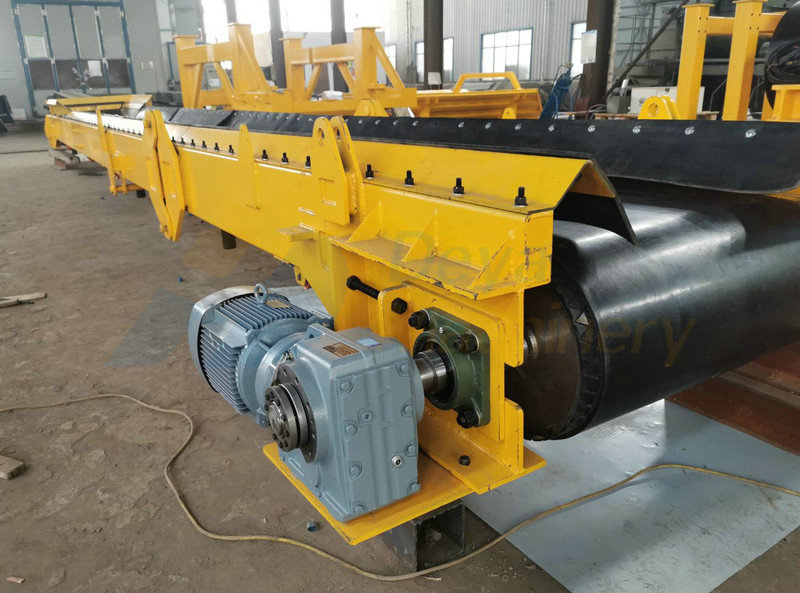

A. Installation of conveyor

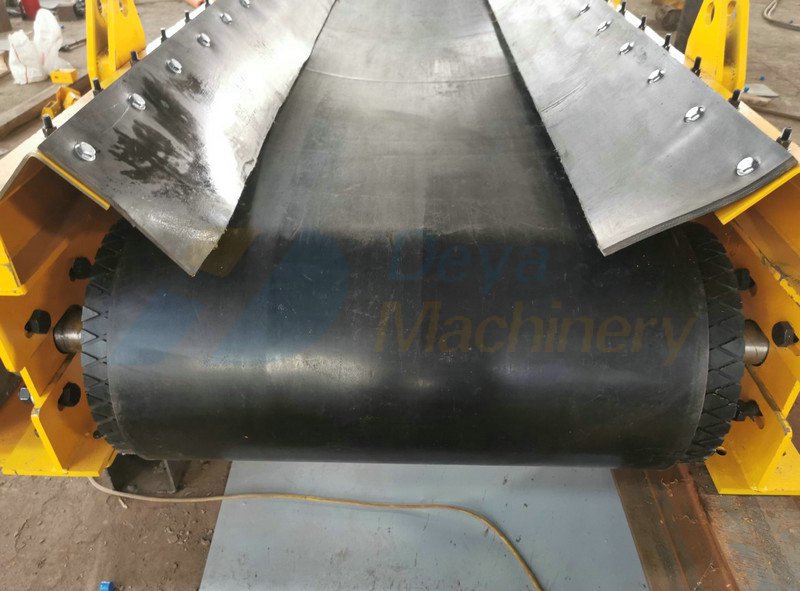

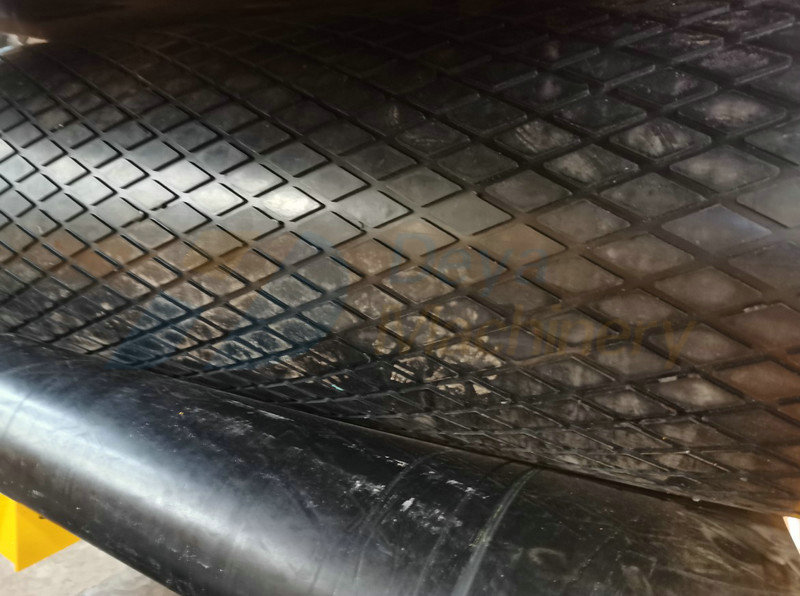

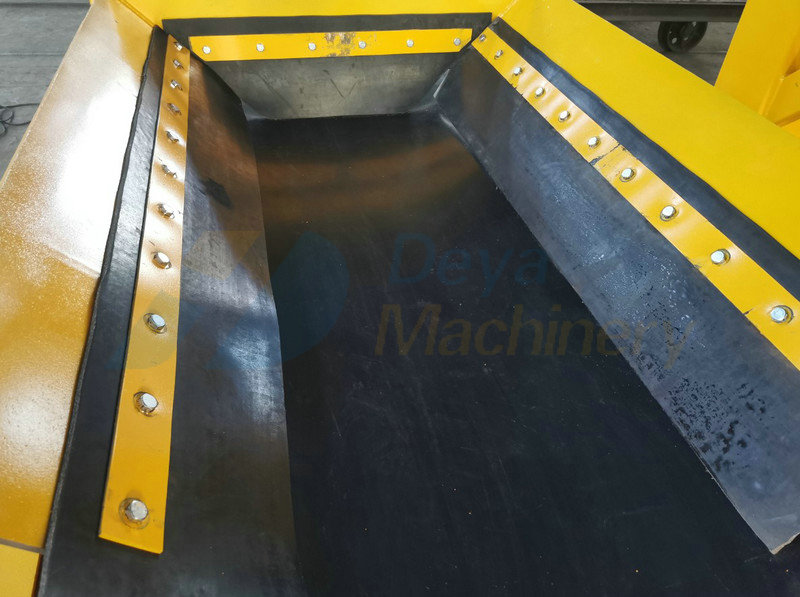

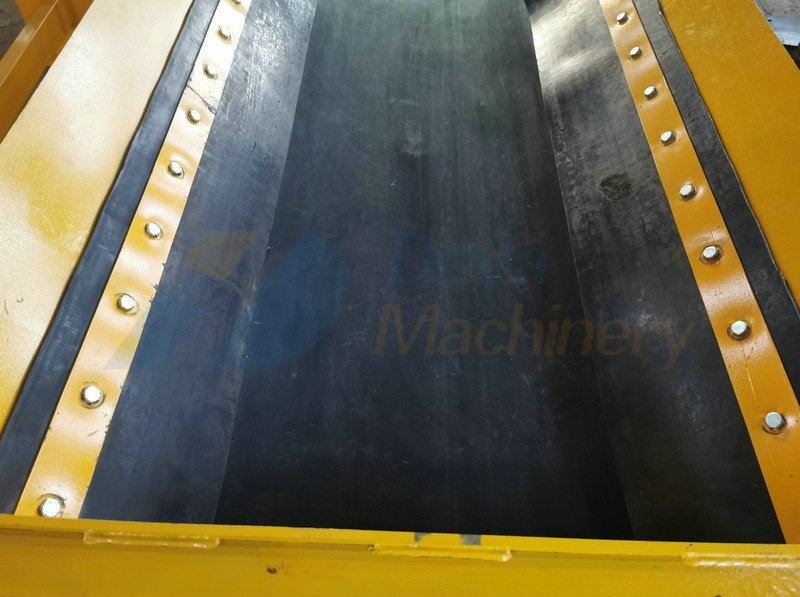

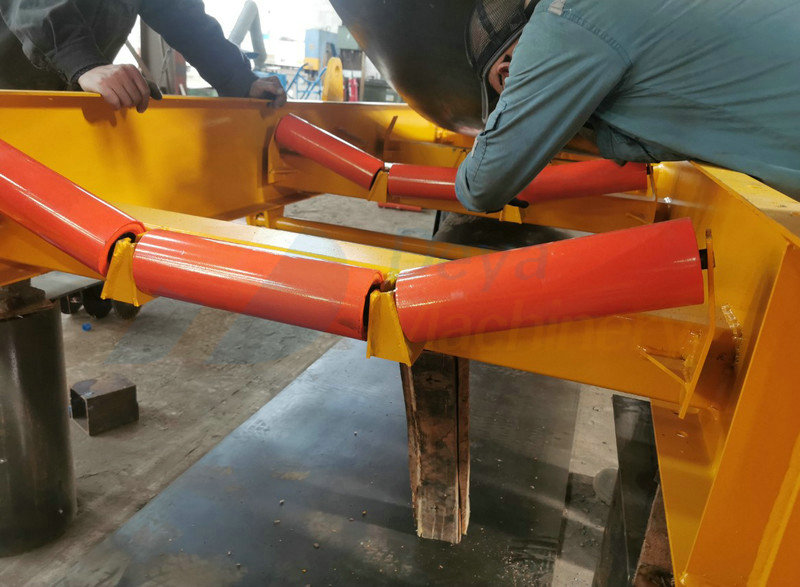

B. Conveyor drive pulley and idler pulley with rubber coated groove to increase friction

C. Cleaning device of the conveyors

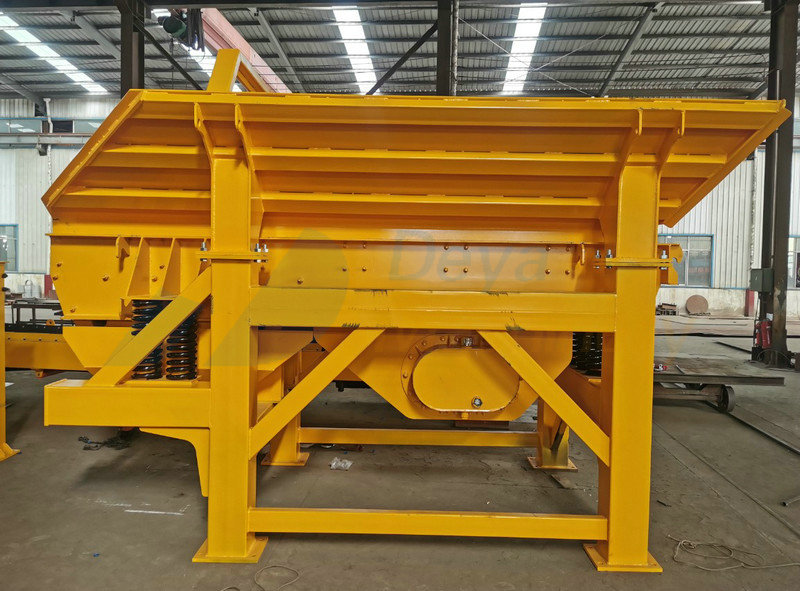

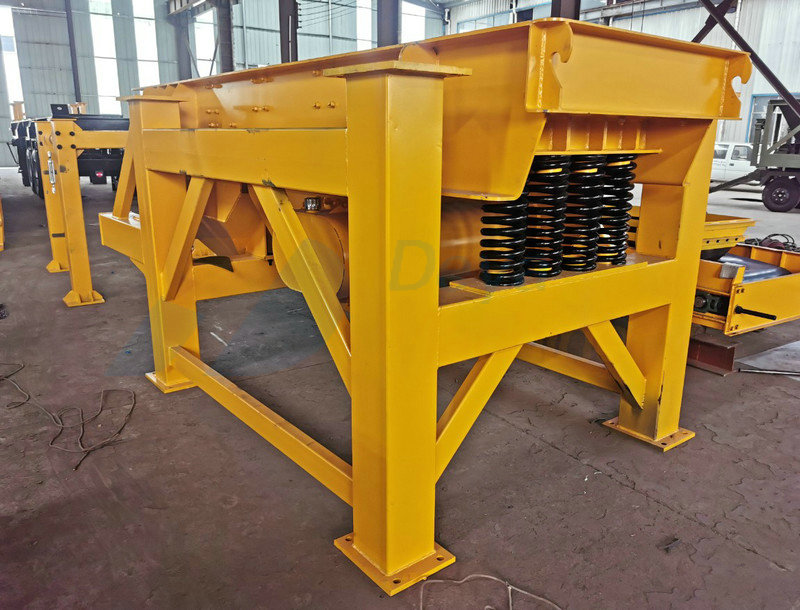

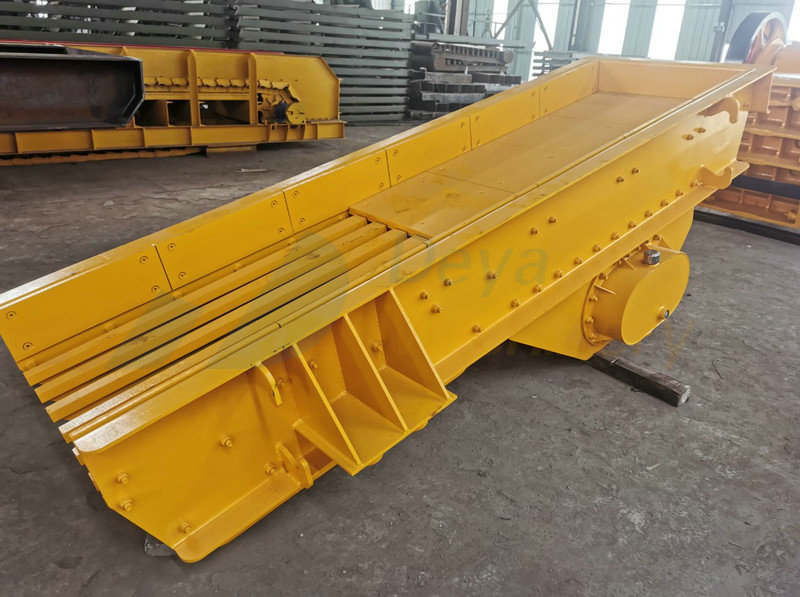

10. Assembly of the vibration feeder

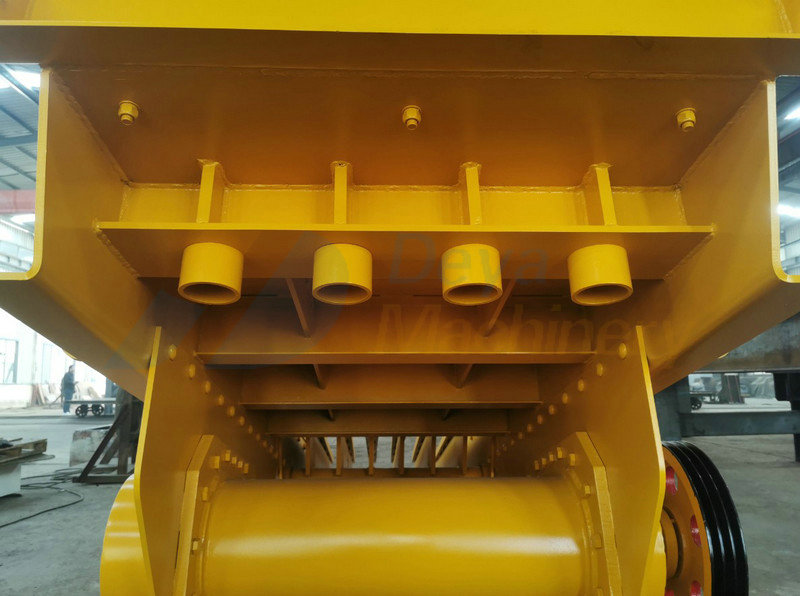

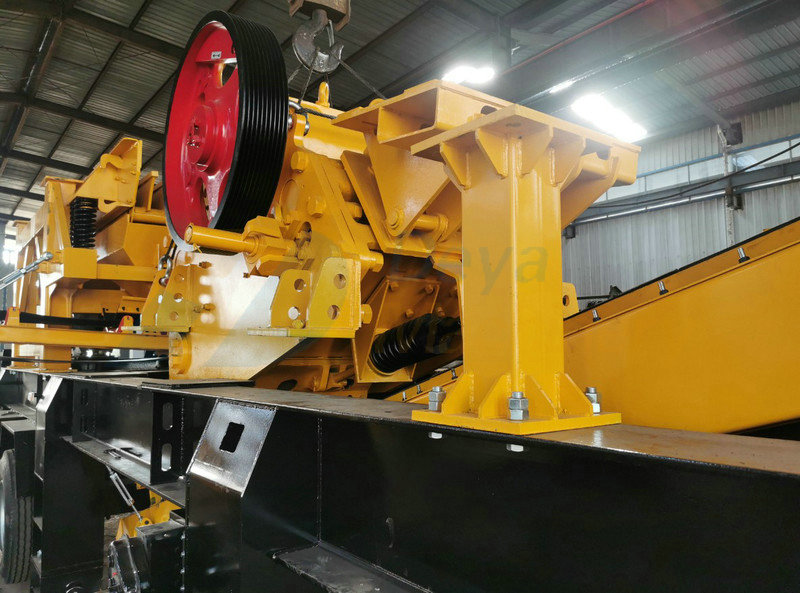

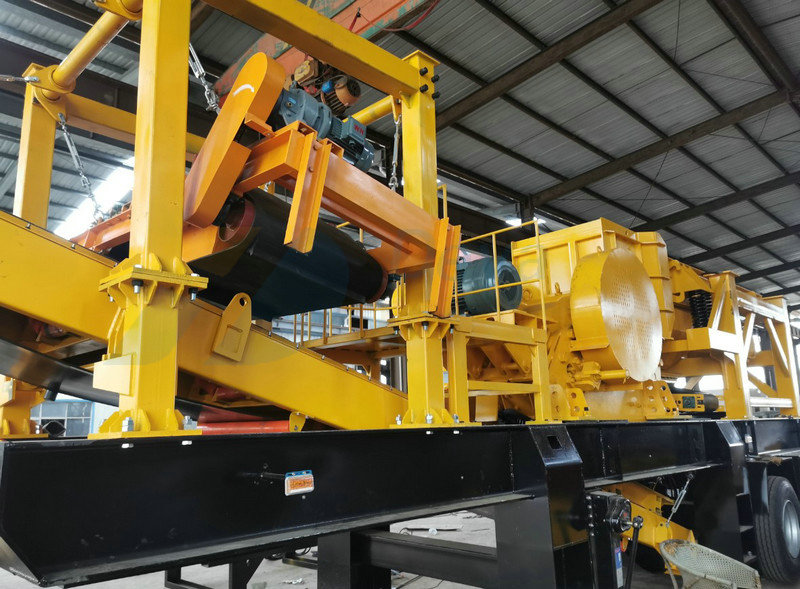

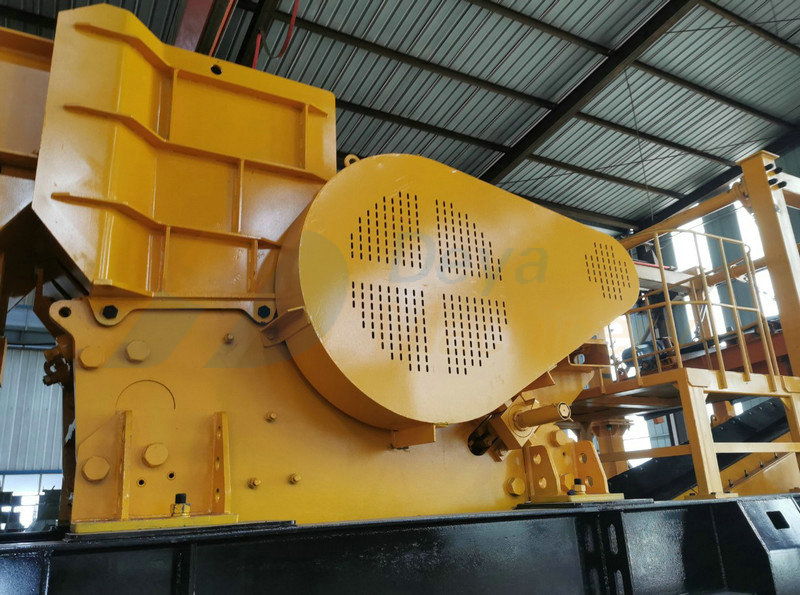

11. Assembly of jaw crusher, loading hopper, maintenance platform, iron separator, main conveyor, side conveyor

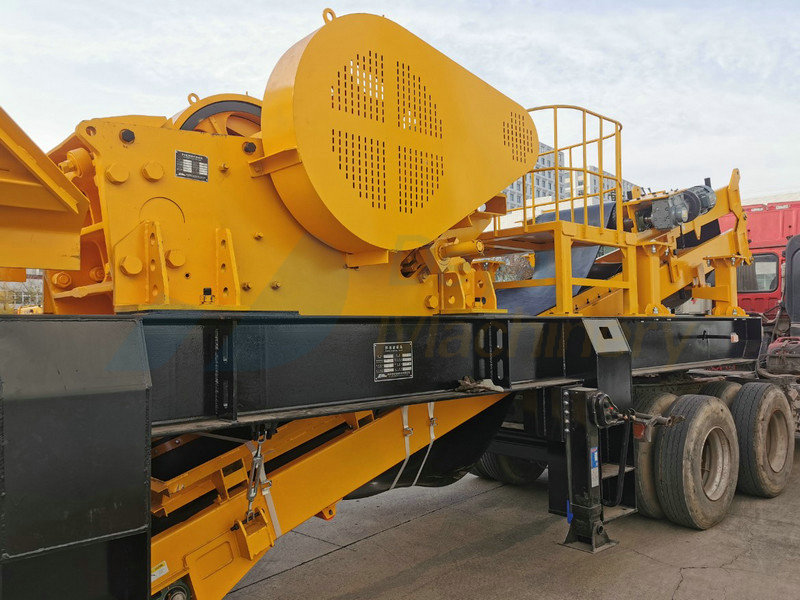

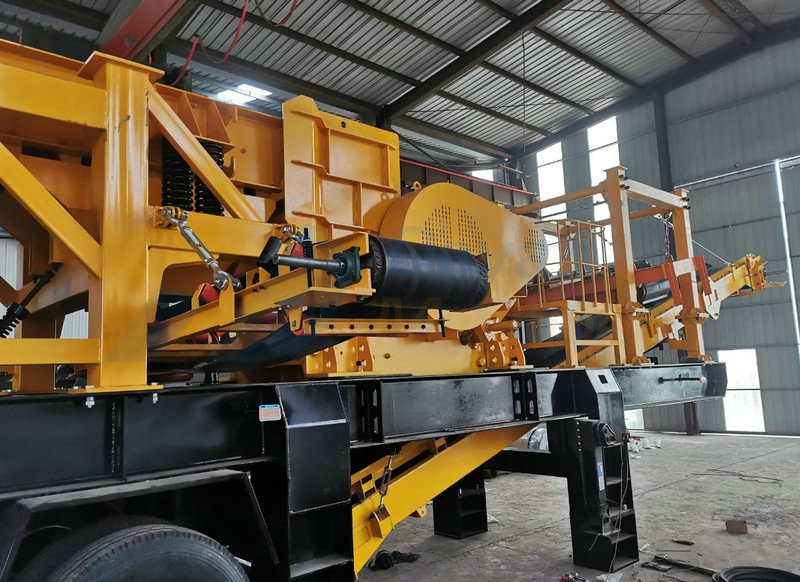

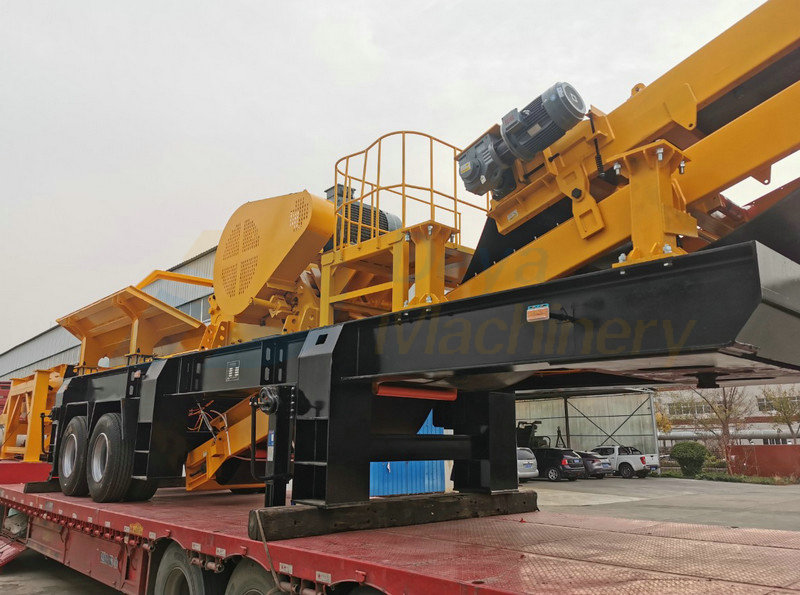

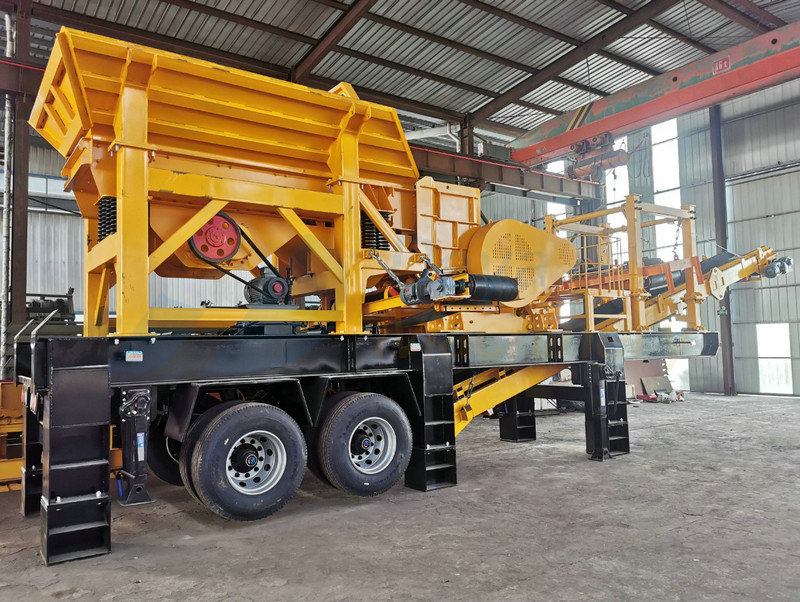

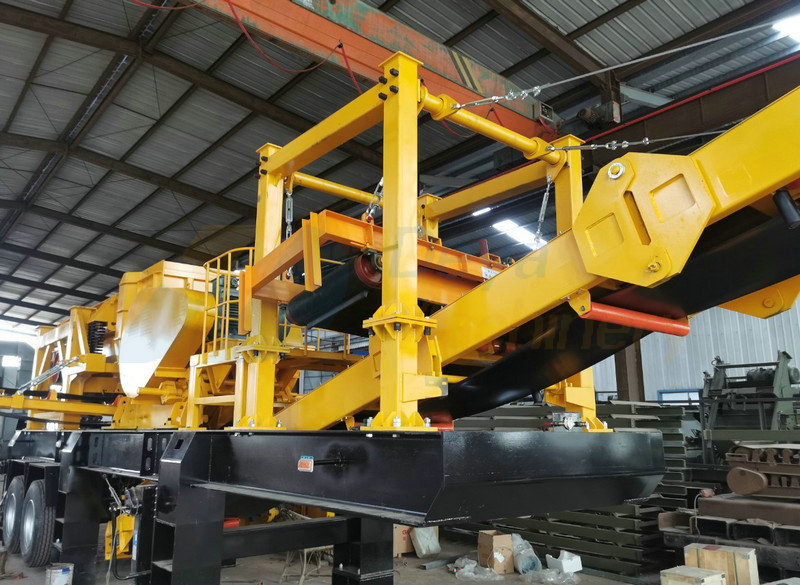

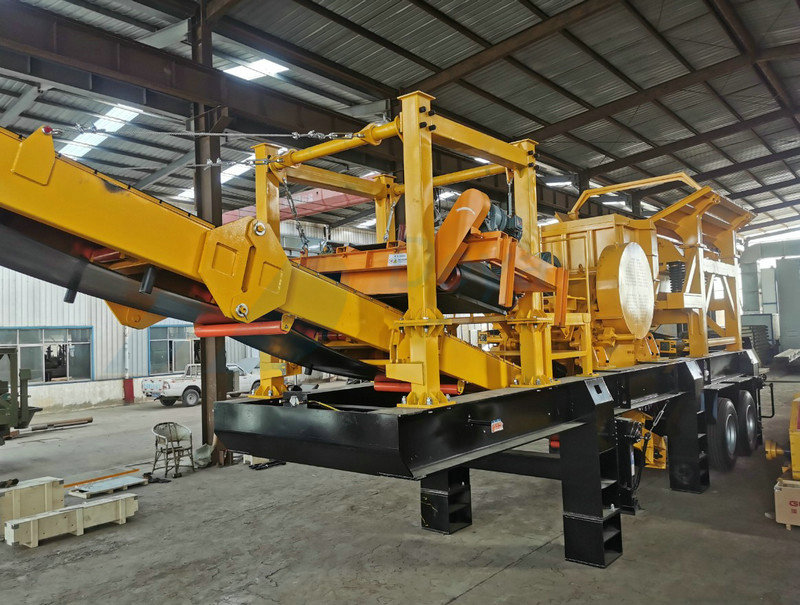

12. Finish assembly of mobile crusher plant(primary crushing)

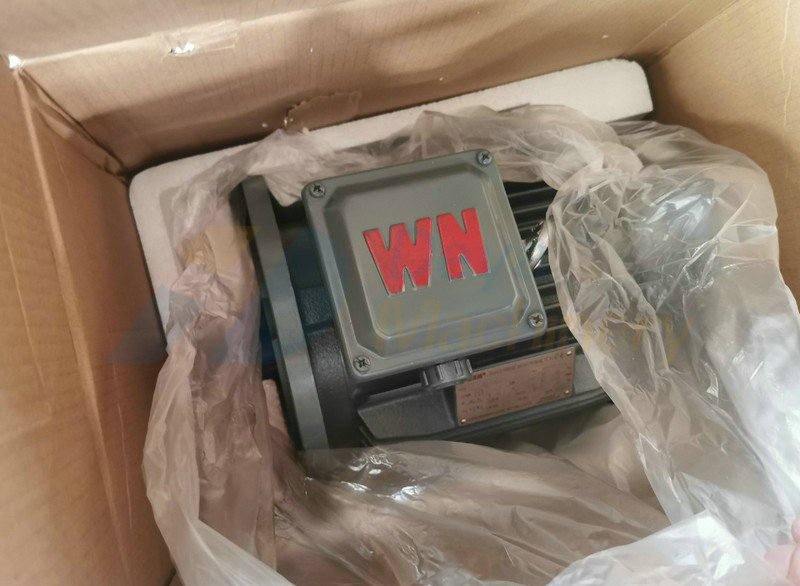

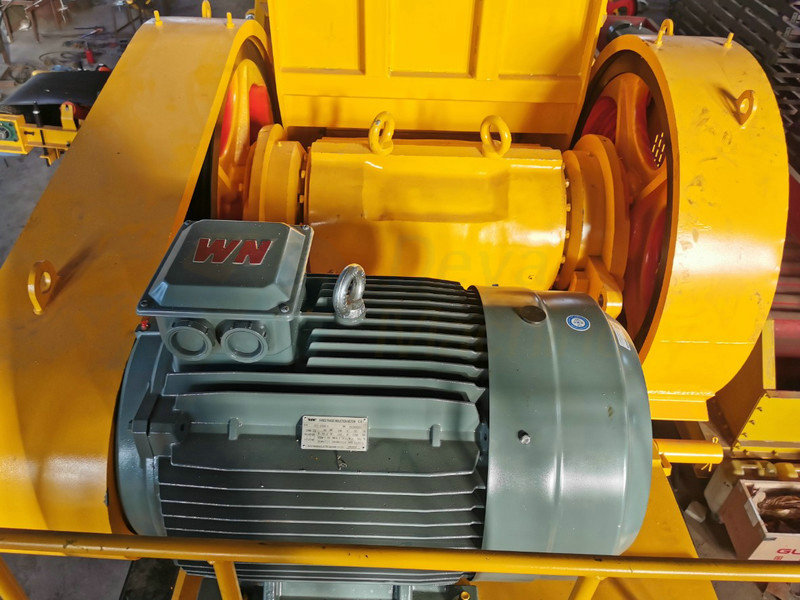

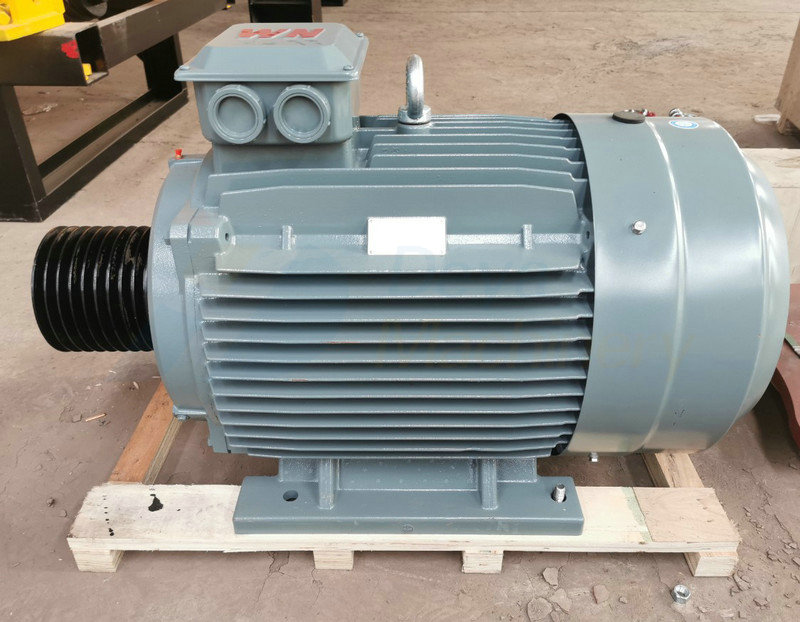

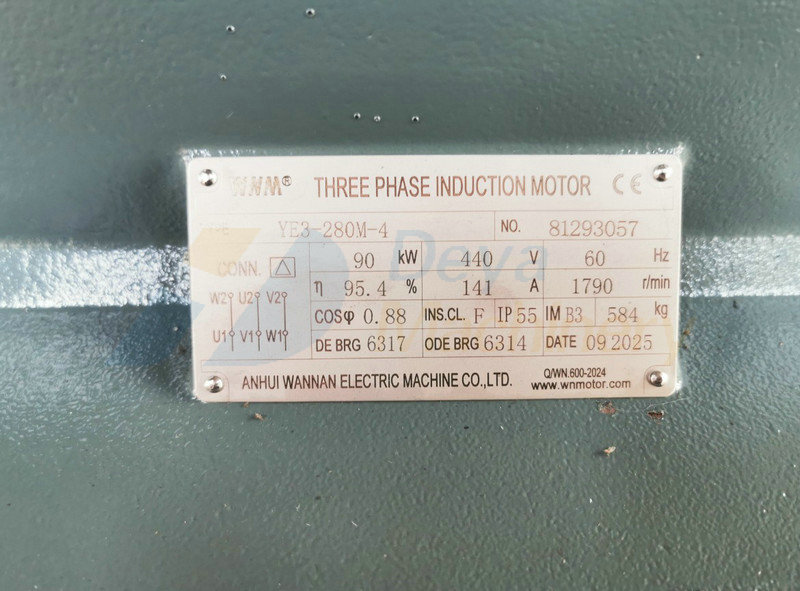

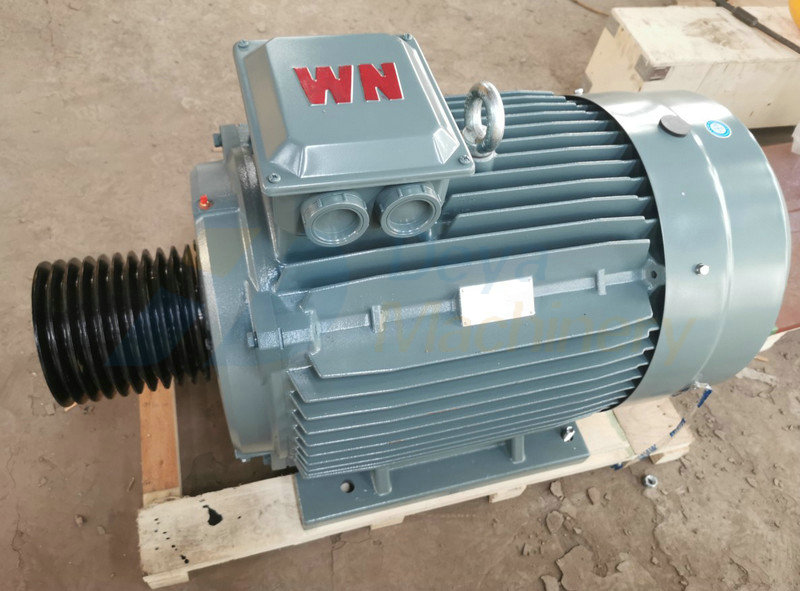

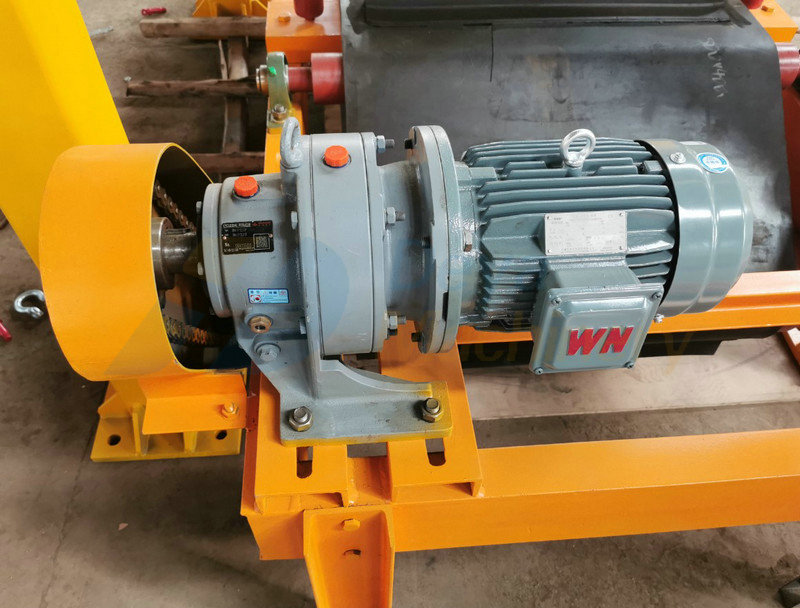

13. All motors China top brand Wan Nan

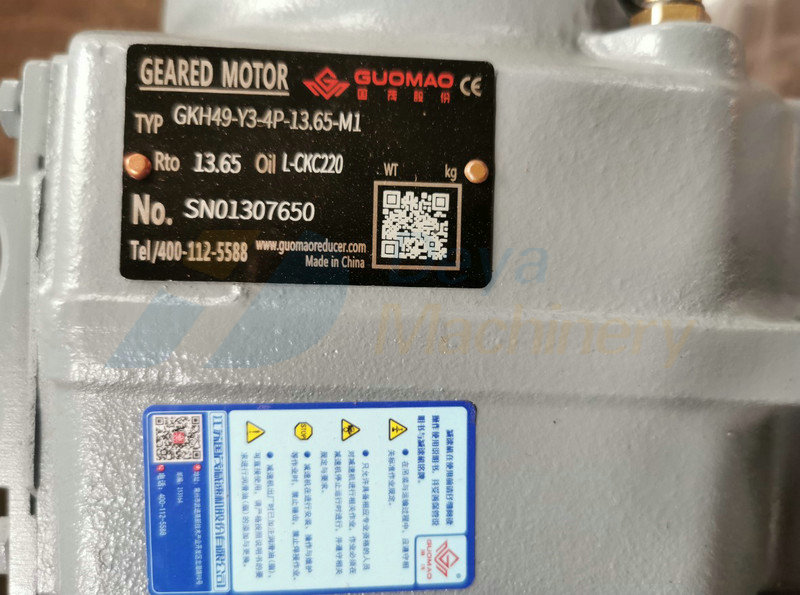

14. All gearboxes China top brand Guomao

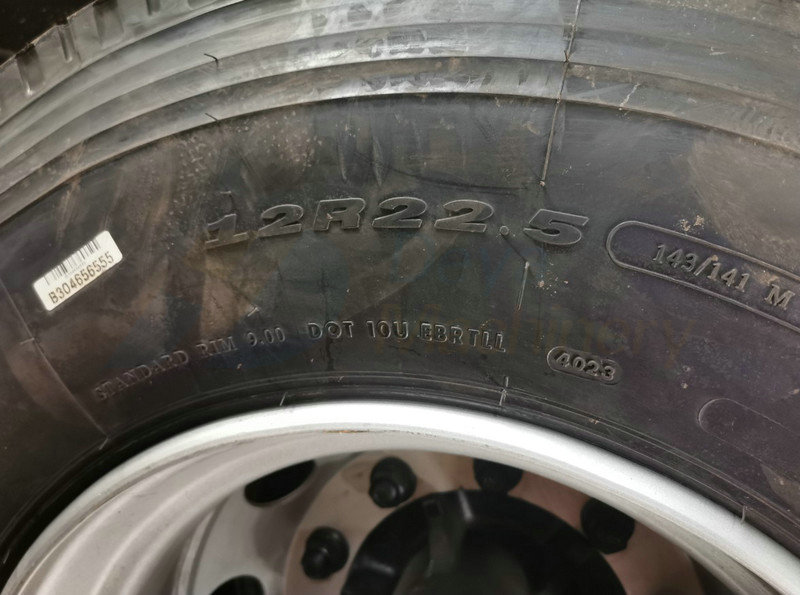

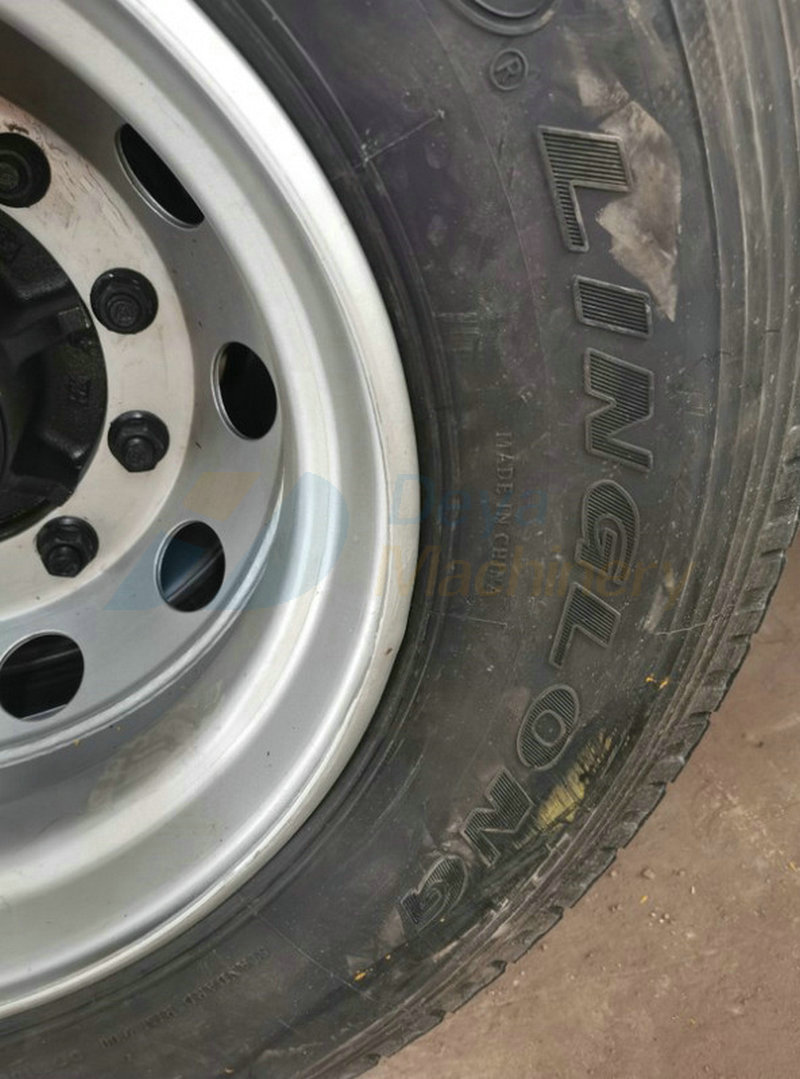

15. Standard tires 12R22.5, China top brand tires Ling Long

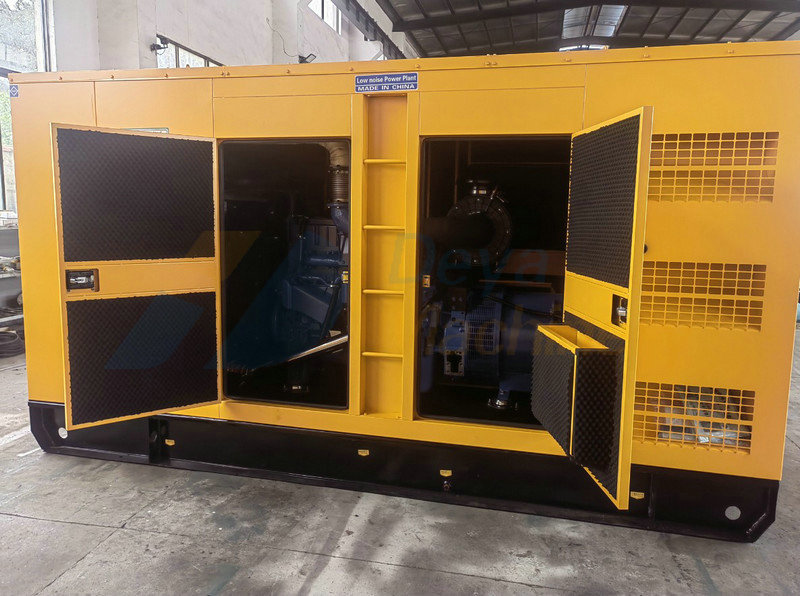

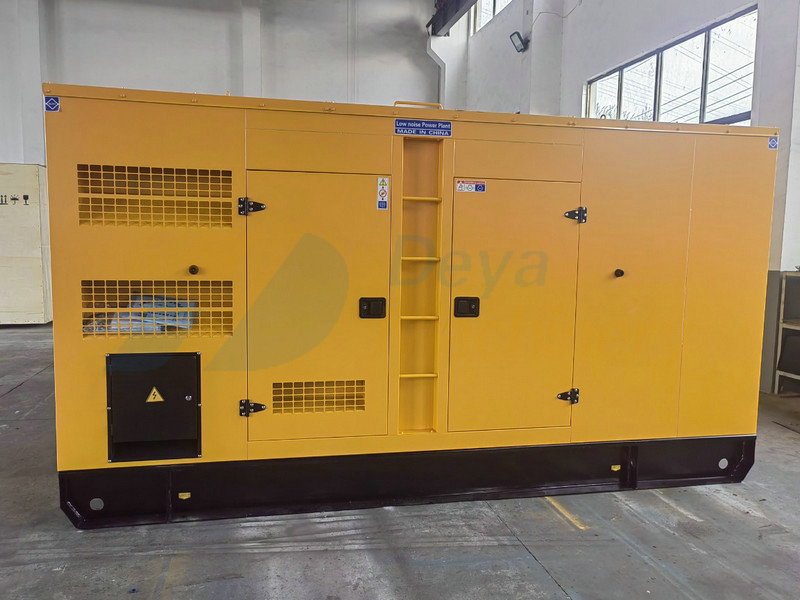

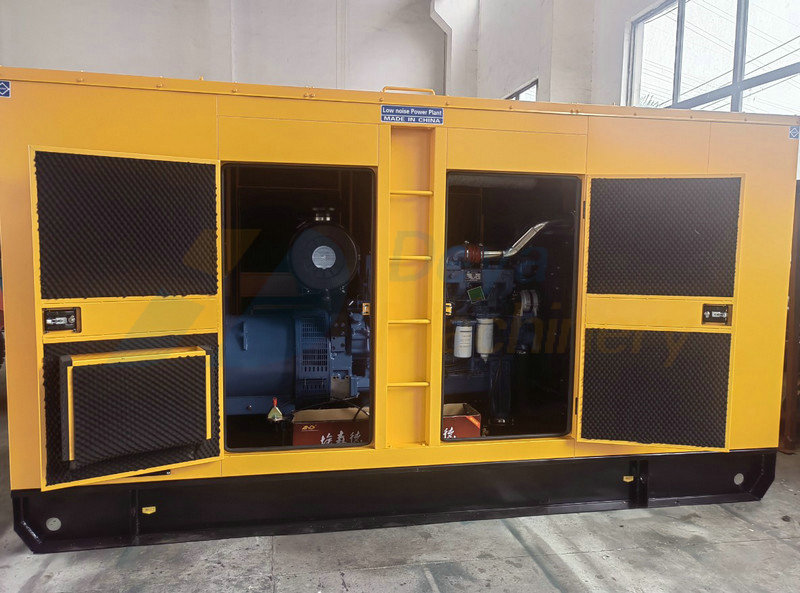

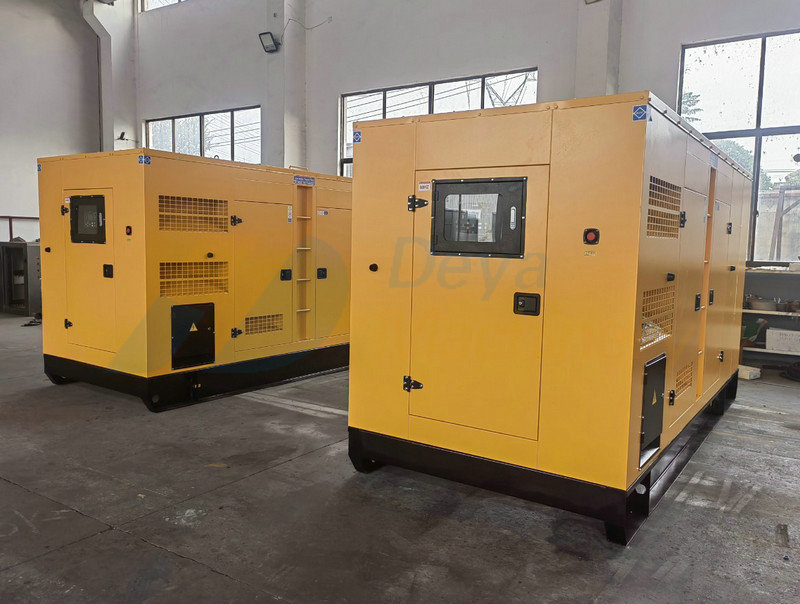

Ⅳ. Diesel generator set 250KW

China best brand diesel Yuchai engine YC6MK420L-D20, 281/309kW, LED display with multi-language for option

Ⅴ. Delivery

1. Make up coating before delivery

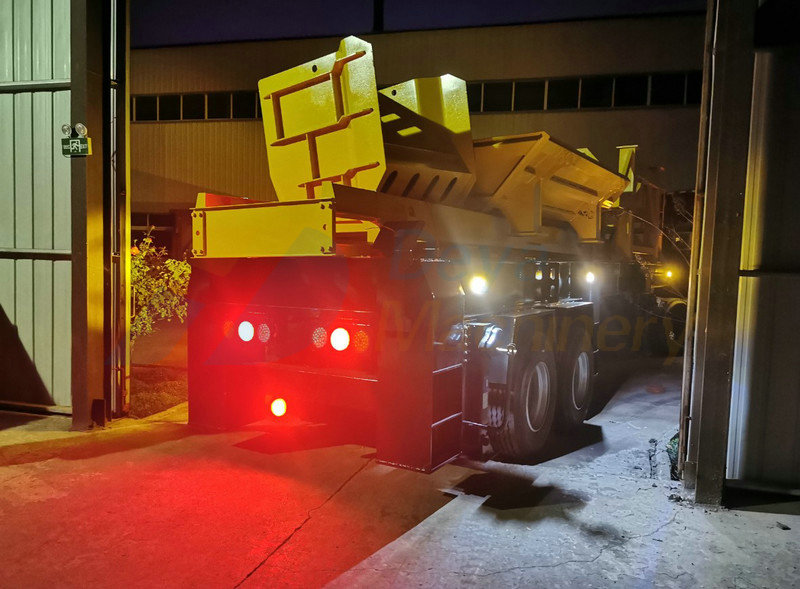

2. Delivery from Deya Machinery's workshop

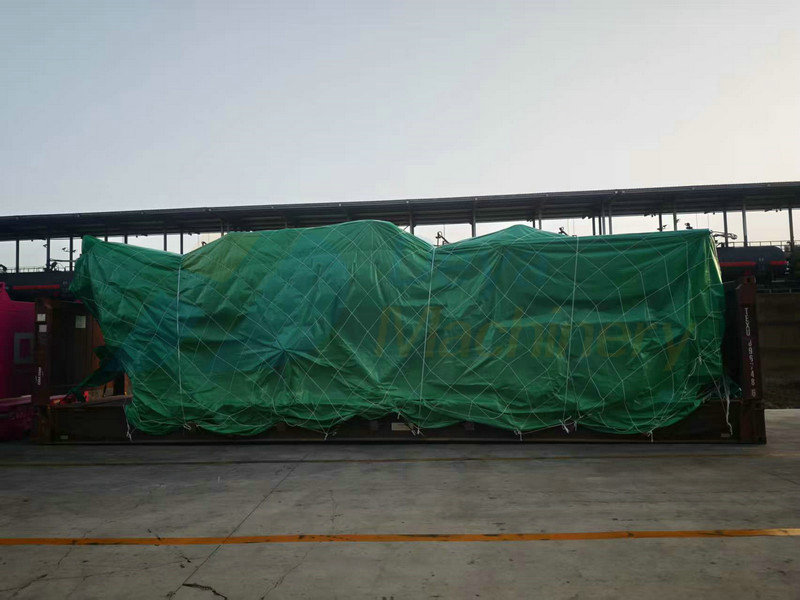

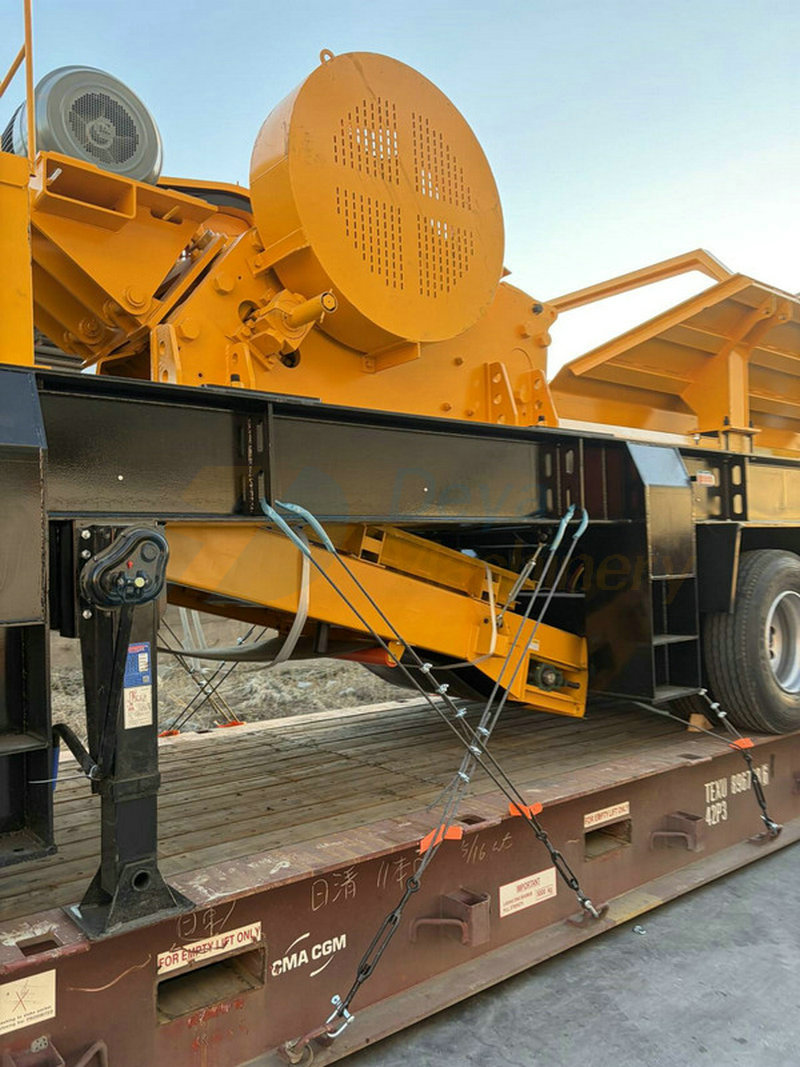

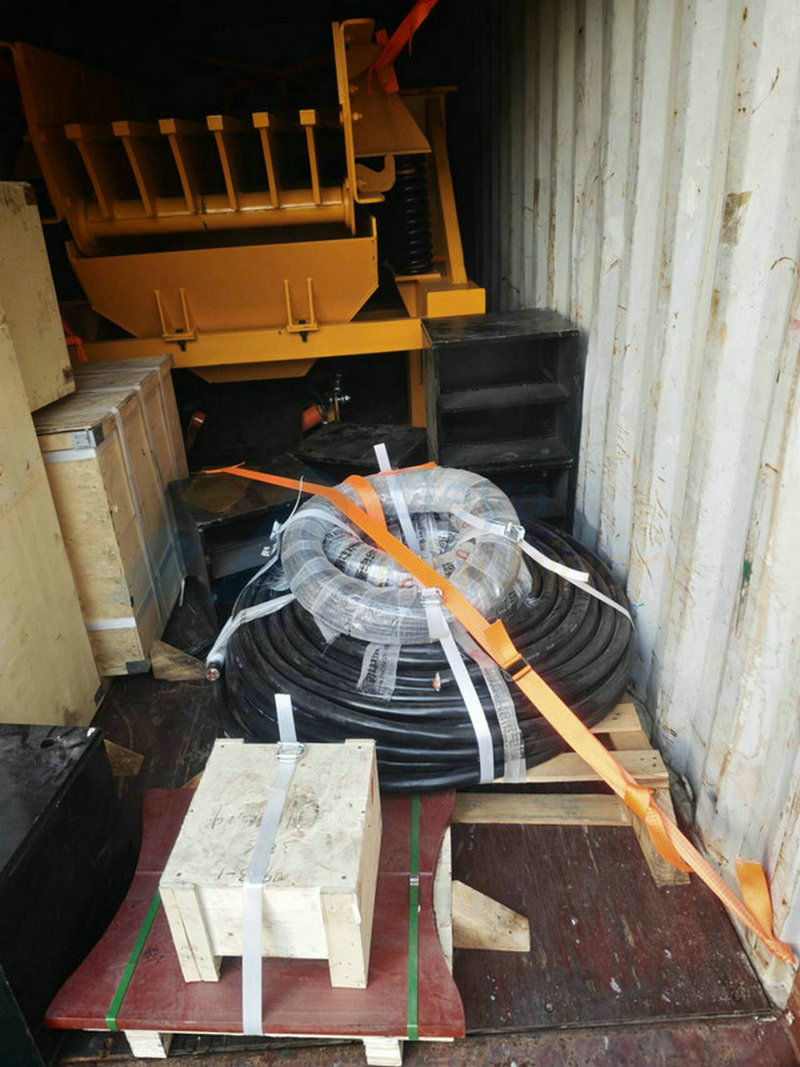

3. Loading and fastening in 40ft flat rack

4. Feeder and small parts loading to 20ft container

Deya machinery team puts heart and soul for each equipment supplied. Qualified equipment create much more value than expected, your trust values much more than quality and service. Contact us for more information if you are interested in the mobile crusher plant.
